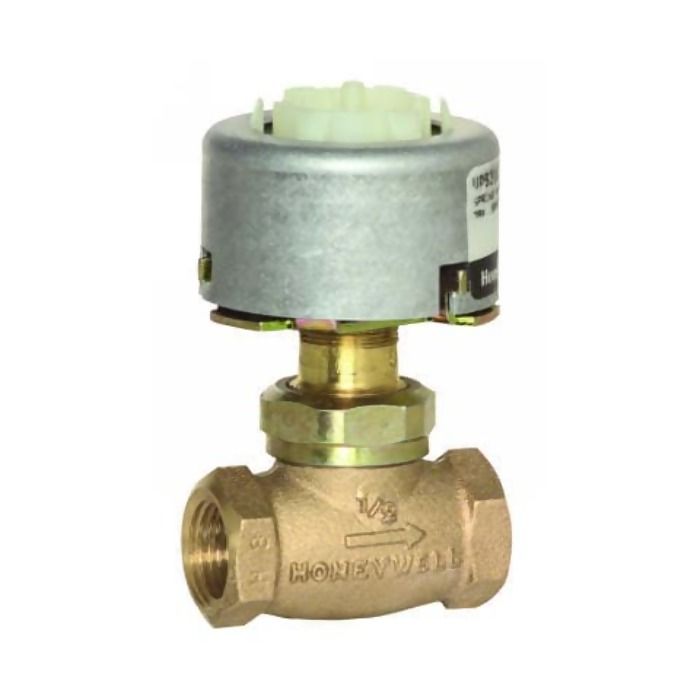

Honeywell VP531C1067/U Pneumatic Terminal Unit Valve 2 Way 1/2 in 2.3 Cv

Product Description

The Honeywell VP531C1067/U is a pneumatic terminal unit valve designed for controlling steam or hot and cold water in HVAC applications. This valve features a compact, two-way design suitable for a variety of installation environments. It has a connection size of half an inch and a capacity of 2.3 Cv, making it efficient for commercial use.

• Two-way, unitary design for effective control
• Compatible with several spring ranges and capacities
• Easily replaceable actuator assembly

Product Highlights

The Honeywell VP531C1067/U provides proportional control and is ideal for terminal units in commercial building systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VP531C1067/U

Technical Specifications

• Dimensions (in.): Pipe centerline to top of actuator is three and a half inches, face-to-face is two and nine thirty-seconds inches
• Temperature Range: 40 F to 240 F
• Connection Type: NPT
• Operating Conditions: Steam, hot, or cold water
• Maximum Diaphragm Pressure: 30 psi
• Controlled Fluid: Steam, Water
