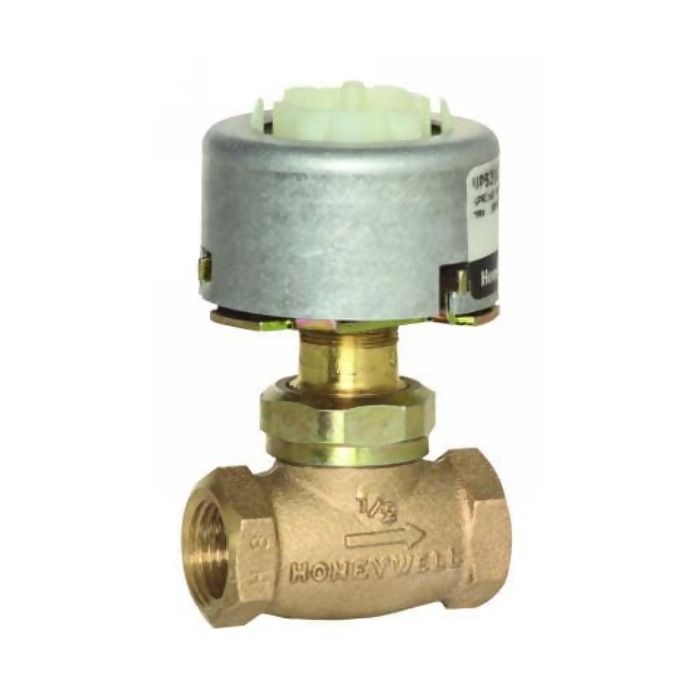

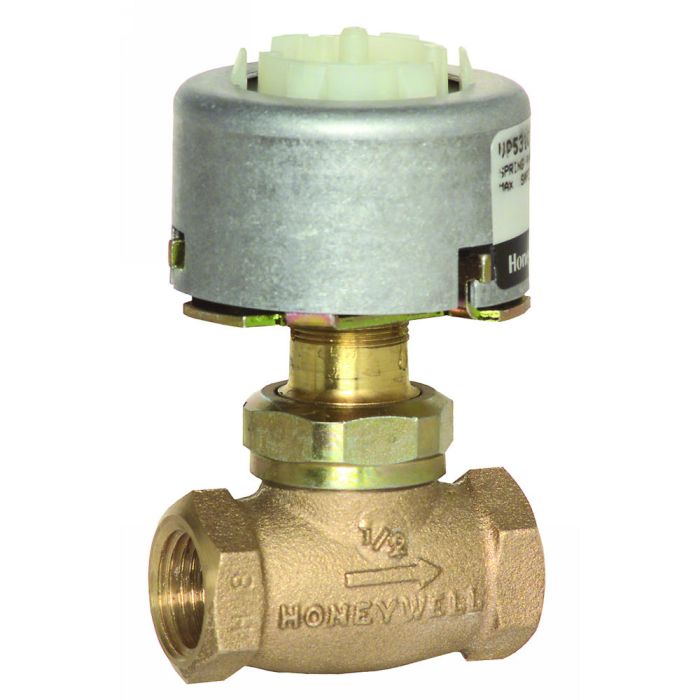

Honeywell VP531C1000/U Pneumatic Terminal Unit Valve

Product Description

The Honeywell VP531C1000/U is a pneumatic terminal unit valve designed for effective control of steam, hot water, or cold water in HVAC systems. This two-way, normally open valve operates at a capacity of 1.6 Cv and is suitable for use in various applications where flow regulation is needed.

• Optimized for steam and thermal fluid control
• Compact design fits within most unit enclosures
• Easily replaceable actuator for maintenance ease

Product Highlights

The valve supports service in conditions up to two hundred fifty degrees Fahrenheit, making it suitable for a wide variety of heating and cooling applications.

Product Information

Standard Information

• Service: Steam, Hot, or Cold Water
• Max Temperature: 250°F
• Min Temperature: 35°F

Technical Specifications

• Spring Range: 2 psi to 5 psi
• Operating Conditions: 40°F to 240°F (4°C to 116°C)
• Maximum Diaphragm Pressure: 30 psi
• Connection Size: 1/2 in.
• Body Pattern: Two-way
• Valve Action: Proportional Normally Open
• Body Pressure: 150 psi
• Controlled Fluid: Steam, Water
