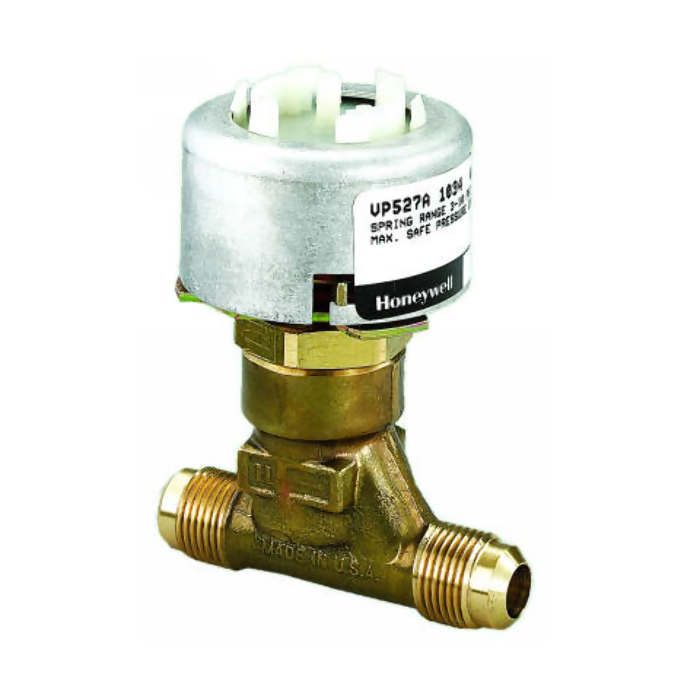

Honeywell VP527A1067/U Pneumatic Water Valve

Product Description

The Honeywell VP527A1067/U is a pneumatic water valve designed for efficient fluid control in various HVAC applications. This valve features a two-way configuration and is suitable for both hot and cold water. Its capacity is rated at 1.0 Cv, making it ideal for use in air conditioning and fan coil units.

• Compact size allows installation in tight spaces.
• Constructed with forged brass for durability.
• Spring-loaded Buna-N V-ring packing is easy to replace without system shutdown.

Product Highlights

This valve provides proportional control and is normally open, allowing for convenient operation in automation systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VP527A1067/U

Technical Specifications

• Service: Hot And/Or Cold Water
• Operating Conditions: 35 F To 250 F (2 C To 121 C)
• Maximum Diaphragm Pressure: 30 psi
• Connection Size: 1/2 inch O.D.; Nominal 3/8 inch
• Body Pressure: 250 psi
• Flow Capacity: 1.0 Cv
• Material: Forged Brass
• Dimensions: 4.125 inches high × 3.125 inches wide
