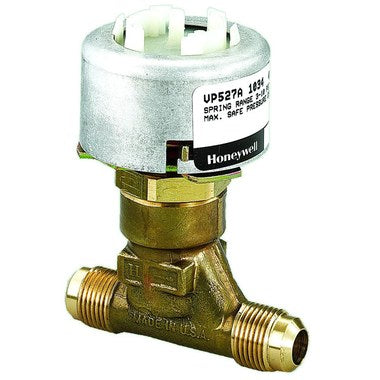

Honeywell VP527A1018/U Pneumatic Water Valve 0.63 Cv (1/2 in. O.D. Flare)

Product Description

The Honeywell VP527A1018/U is a pneumatic water valve designed for efficient control of hot and cold water in HVAC systems. This valve features a two-way design with a 1/2 inch outer diameter and a 0.63 Cv capacity, suitable for installation where space is limited.

• Proportional normally open design for precise flow control.
• Forged brass construction ensures durability and long-lasting performance.
• Spring-loaded Buna-N V-ring packing allows for easy maintenance without system shutdown.

Product Highlights

The VP527A1018/U is ideal for air conditioning and fan coil units. It helps in managing water flow efficiently and can be easily integrated into existing systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VP527A1018/U

Technical Specifications

• Service Type: Hot and/or Cold Water
• Temperature Range: 35°F to 250°F (2°C to 121°C)
• Maximum Diaphragm Pressure: 30 psi
• Spring Range: 3 psi to 10 psi
• Body Pressure: 250 psi
• Fluid Controlled: Water
• Overall Dimensions: 4.125 inches high x 3.125 inches wide
