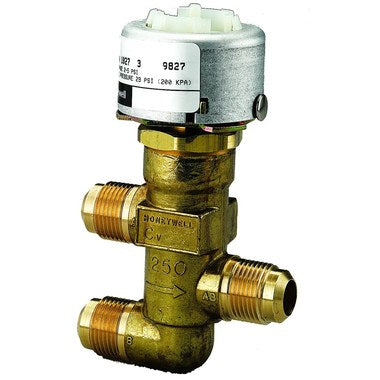

Honeywell VP526A1118/U Pneumatic Pressure Water Valve 1.6 Cv 1/2 O.D. Flare 8-11 PSI

Product Description

The Honeywell VP526A1118/U is a pneumatic pressure water valve used for controlling the flow of water in various HVAC applications. It features a three-way design with a capacity of 1.6 Cv and connections for 1/2 inch O.D. This valve operates with a pressure range of eight to eleven psi.

• Compact design allows for installation in tight spaces.
• Direct-acting actuator functions with a high-temperature plastic connector.
• Brass seats combined with a stainless steel stem provide reliable performance.

Product Highlights

Ideal for unit air conditioning and fan coil systems, this valve ensures consistent and linear flow control while maintaining high efficiency.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VP526A1118/U

Technical Specifications

• Service: Hot and/or cold water
• Operating Conditions: 35 F to 250 F (2 C to 121 C)
• Maximum Diaphragm Pressure: 29 psi
• Size: 3/8 inch (nominal)
• Connection Type: 1/2 inch O.D. flare
• Body Pattern: Three-way mixing
• Pressure Rating: 250 psi
• Flow Control: Proportional Normally Open Ports B to AB
