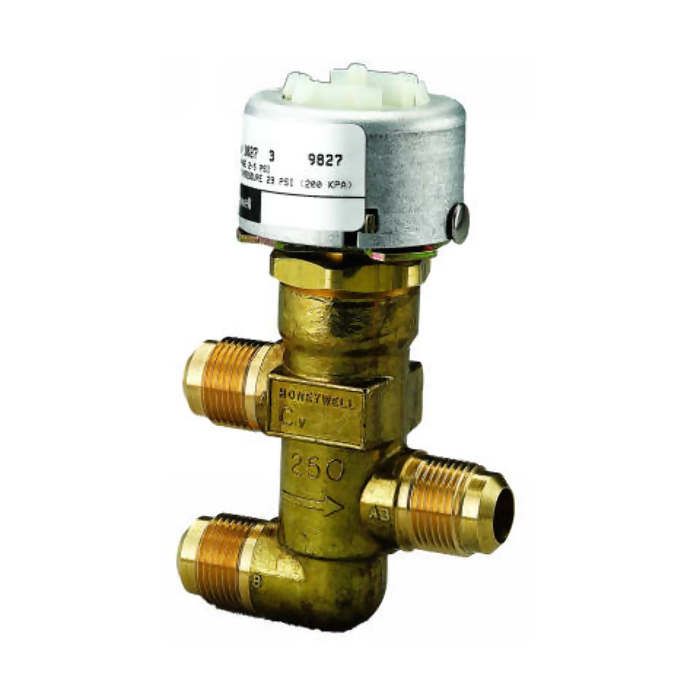

Honeywell VP526A1100/U Pneumatic Pressure Water Valve 1/2 in. O.D. 3-WAY MIXING VLV

Product Description

The Honeywell VP526A1100/U is a pneumatic pressure water valve designed for proportional control in various HVAC applications. This three-way mixing valve operates effectively with a nominal connection of three-eighths inches and has a capacity of 1.0 Cv. It is suitable for both hot and cold water systems.

• Small size allows for installation in confined spaces
• Direct-acting, rolling diaphragm actuator for reliable operation
• Spring-loaded, self-adjusting Buna-N V-ring packing for durability

Product Highlights

This valve offers consistent performance with a maximum diaphragm pressure of twenty-nine psi. It features a stainless steel stem and provides an uninterrupted flow across the entire range of plug travel.

Product Information

Standard Information

• Service: Hot and/or Cold Water
• Operating Conditions: Thirty-five degrees Fahrenheit to two hundred fifty degrees Fahrenheit (two degrees Celsius to one hundred twenty-one degrees Celsius)

Technical Specifications

• Maximum Diaphragm Pressure: Twenty-nine psi
• Valve Action: Proportional Normally Open Ports B to AB
• Connection Type: 45 degrees SAE flare
• Body Type: Unitary
• Pressure: Two hundred fifty psi maximum
• Flow Capacity: One Cv
• Body Pressure: One thousand seven hundred twenty-four kPa
• Humidity Range: Five to ninety-five percent RH
