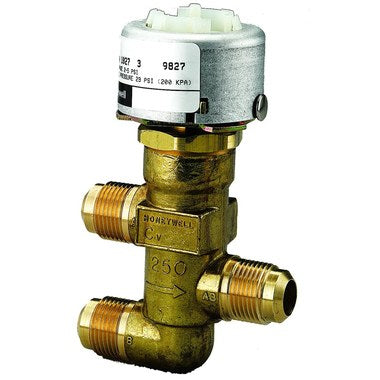

Honeywell VP526A1092/U Pneumatic Pressure Water Valve 1.6 Cv 3/8 Inch 1/2 Inch OD Flare

Product Description

The Honeywell VP526A1092/U Pneumatic Pressure Water Valve regulates water flow in HVAC systems. It features a three-way design that allows hot and cold water mixing, with a capacity of 1.6 Cv. This valve is suited for fan coil units and unit air conditioners.

• Three-way mixing valve for proportional control
• 1/2 inches O.D., 3/8 inches nominal
• Operating pressure range of 2 psi to 5 psi

Product Highlights

This valve is compact, making it ideal for installations where space is limited. The integral high-temperature plastic air connector supports 1/4 inches O.D. tubing, and it includes self-adjusting Buna-N V-ring packing that is easily replaceable.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VP526A1092/U

Technical Specifications

• Service: Hot and/or cold water
• Operating Conditions: 35 F to 250 F
• Maximum Diaphragm Pressure: 29 psi
• Connection Size: 1/2 inches O.D.; 3/8 inches nominal
• Valve Type: Three-way mixing
• Spring Range: 2 psi to 5 psi
• Weight: 2 pounds
• Dimensions: 4.875 inches high x 3.125 inches wide
