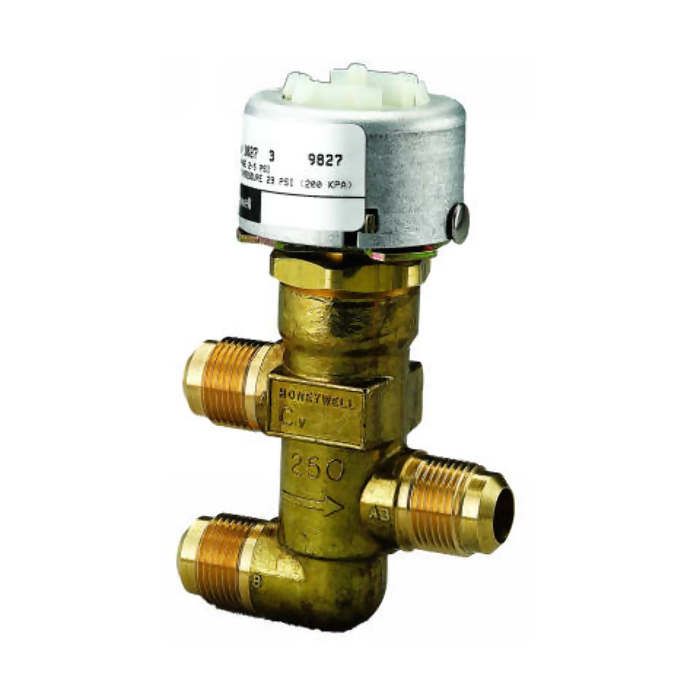

Honeywell VP526A1076/U Pneumatic Pressure Water Valve

Product Description

The Honeywell VP526A1076/U is a pneumatic pressure water valve designed for use in HVAC systems. This valve controls the flow of hot or cold water, ensuring optimal system performance. It features three-way mixing capabilities for precise control.

• 1/2-inch O.D. size for compact installations.
• Proportional normally open ports for versatile applications.
• Durable construction with brass seats and stainless steel stem.

Product Highlights

The valve provides reliable operation with direct-acting functionality and a rolling diaphragm actuator.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VP526A1076/U

Technical Specifications

• Service: Hot and/or Cold Water
• Operating Conditions: 35 F to 250 F (2 C to 121 C)
• Maximum Diaphragm Pressure: 29 psi
• Dimensions: 4 7/8 inches high x 3 1/8 inches wide
• Connection Size: 1/2 inches O.D.; Nominal 3/8 inches
• Spring Range: 3 psi to 10 psi
• Flow Capacity: 1.6 Cv
• Body Pressure: 250 psi
