Honeywell VP526A1050/U Three-way Mixing Water Valve 5/8 inches O.D. 2.5 Cv

Product Description

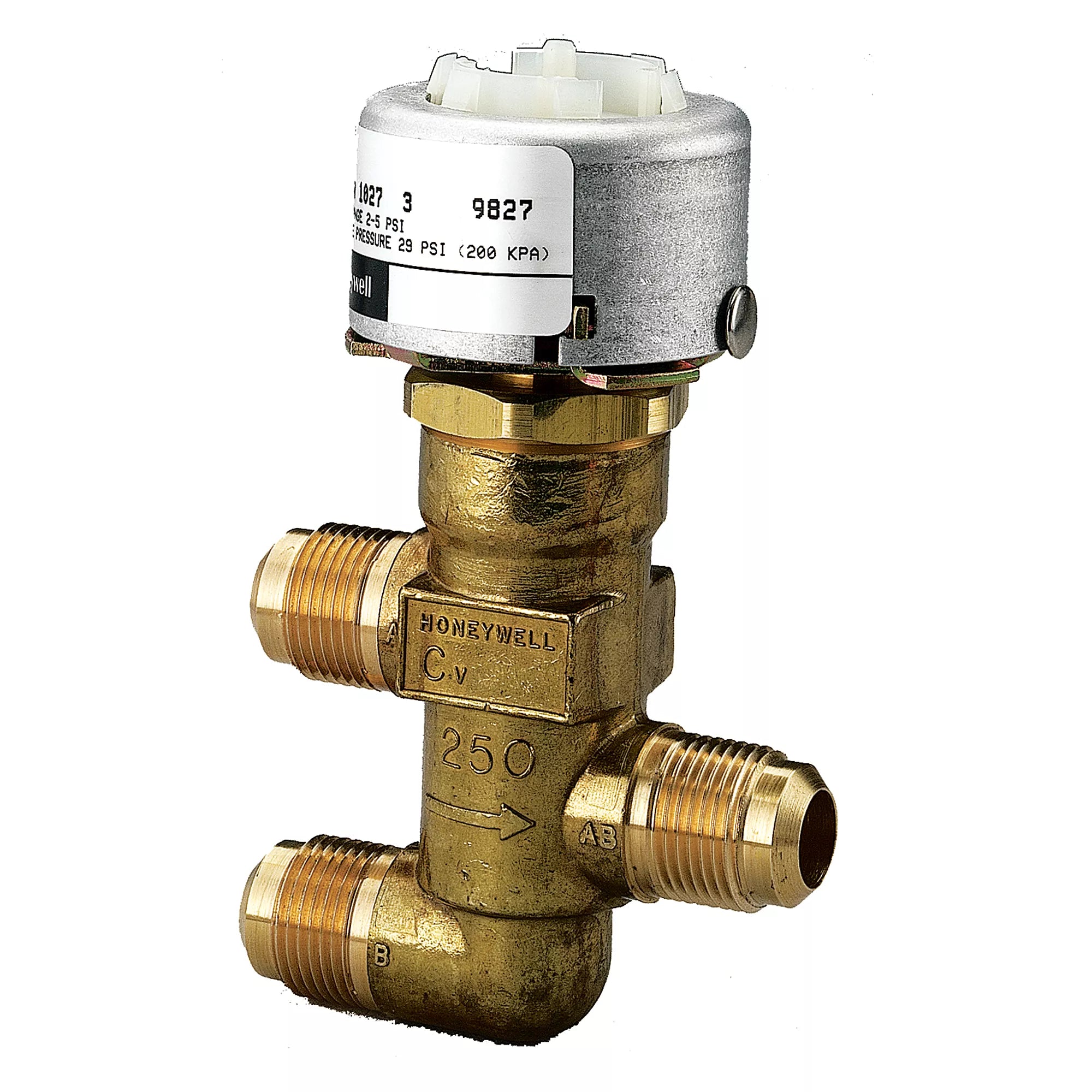

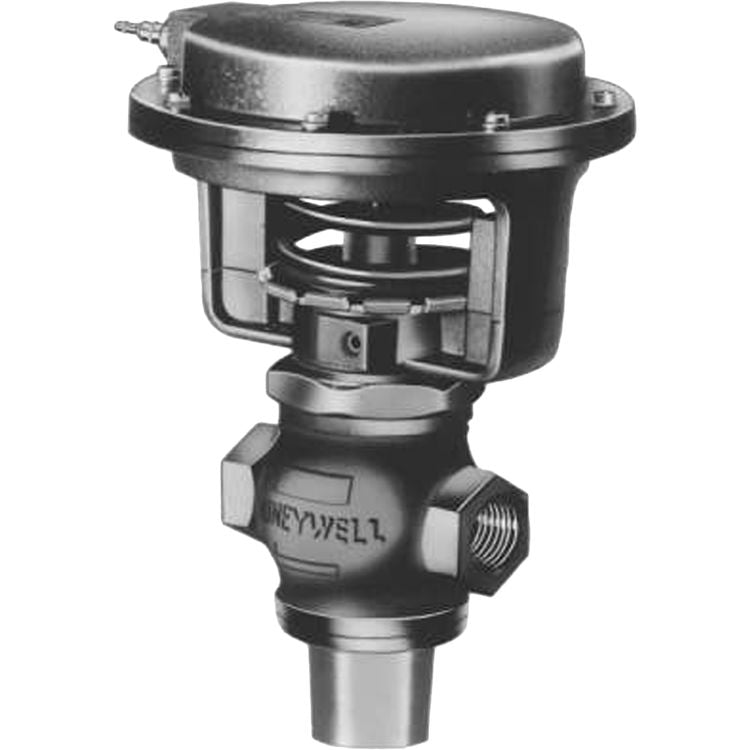

The Honeywell VP526A1050/U is a three-way mixing, unitary water valve with 5/8" O.D and 2.5 Cv capacity, designed for proportional control of hot or cold water in unit air conditioners and fan coil systems. It features flare connections and is suitable for installation in limited spaces.

• Forged brass body with brass seats and contoured plug.
• Stainless steel stem.
• Direct-acting, rolling diaphragm actuator with integral high temperature plastic air connector for 1/4 in. O.D. plastic tubing.

Product Highlights

This Honeywell water valve provides precise control and reliable performance in HVAC applications, ensuring efficient mixing of hot and cold water.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: VP526A1050/U
• Country of Origin: USA

Technical Specifications

• Brand: Honeywell
• Composition: Body: Forged Brass, Seats: Brass - lower integral, upper removable, Plug: Contoured Brass, Packing: Buna "V" ring, spring loaded, self-adjusting replaceable, Stem: Stainless Steel
• Connection Size: 5/8", 1/2"
• Connection Type: Flare
• Height: 2.3
• Length: 6.8
• Prop 65: No
• Width: 4.3
• Country of Origin: USA
• UL Listed: No
• UL Recognized: No
• Service: Hot And/ Or Cold Water
• Operating Conditions: 35 F To 250 F (2 C To 121 C)
• Maximum Diaphragm Pressure: 29 psi
• Temperature Range (F): 35 F to 250 F; Maximum Safe Actuator Diaphragm Temperature--230 F
• Temperature Range (C): 2 C to 121 C; Maximum Safe Actuator Diaphragm Temperature--110 C
• Operating Humidity Range (% RH): 5 to 95% RH
• Body Pattern: Three-way Mixing
• Spring Range (psi): 8 psi to 11 psi
• Spring Range (kPa): 55 kPa to 76 kPa
• Air connections: Push on for 1/4 in. O.D. plastic tubing
• Capacity (Cv): 2.5 Cv
• Capacity (Kv): 2.16 Kv
• Valve Action: Proportional Normally Open Ports B to AB
• Valve Type: Unitary
• Body Pressure (psi): 250 psi
• Body Pressure (kPa): 1724 kPa
• Maximum Diaphragm Pressure (kPa): 200 kPa
• Controlled Fluid: Water
• Close-off Ratings at Branch Line Pressure: 58 psid at 0 psi for Port A,50 psid at 18 psi for Port B
• Category: Commercial Building Controls
• Manufacturer: HONEYWELL
• Product: Pneumatic Products
• Style: Pneumatic Products
• Type: Valve Only
• Connection: Flare
• Cv: 2.5 CV
• Trim Material: Stainless Steel
• Pattern: 3-way
• Size: 5/8 in OD
• Actuator Control Type: Direct acting, rolling diaphragm type
• Air Connection: Integral, for 1/4-in. (6mm) O.D. plastic tubing
• Flow Characteristic: Linear and constant flow throughout plug travel
• Maximum Safe Air Pressure: 30 psi (207 kPa)
• Body Pressure Rating: 250 psi (1724 kPa)
• Media Compatibility: Chilled or Hot Water
• Controlled Medium Temperature: 30 to 250 00b0F
• Valve Size Range: 3/8", 1/2"
• Close-Off Ratings: See Datasheet Chart
• Manufacturer Part Number: VP526A1050/U
• Product Series: VP526
• Family Series: Honeywell HVAC Valves, VP526 Series
• Description: 1/2 VALVE WITH 5/8 O.D. FLARE 2.5 CV
• Pipe Size: 0.5 "
• Max Close-Off Pressure: 58 psi
• Valve Style: Unitary
• Medium Temperature Range: 35-250 00b0F
• Linear: Linear
• Fail-Safe Mode: Spring Configurable
• Short desc: High Pressure Water Valve, 3-Way Mixing, 5/8 Inch Outer Diameter, 2.5Cv, 8 to 11PSI
• Supplier part number: VP526A1050/U
• Yorkland id: VP526A1050/U
