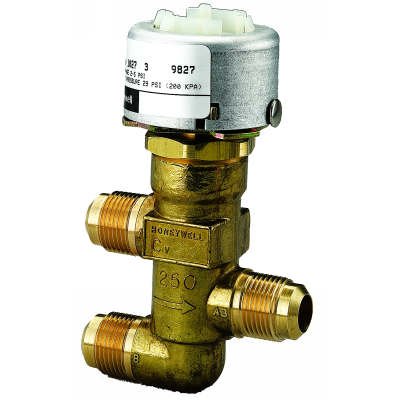

Honeywell VP526A1050 Three-way Mixing Valve 5/8 OD 2.5 Cv

Product Description

The Honeywell VP526A1050 is a versatile three-way mixing valve designed for demanding industrial applications. Featuring a 5/8 inch OD connection and 2.5 Cv, this valve efficiently controls the flow of air, water, and light oil.

• 5/8 inch OD connection
• 2.5 Cv capacity
• High pressure rating

Product Highlights

This valve is suitable for air conditioning, fan coils, and other industrial settings requiring precise flow control. Its durable construction ensures reliable performance in harsh environments. The valve's brass body and Buna-N seals offer excellent corrosion resistance and sealing capabilities.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VP526A1050
• Valve Size: 5/8 inch
• Body Material: Bronze
• Valve Application: Water

Technical Specifications

• Max Pressure: 150 psi WOG
• Flow Capacity (Cv): 2.5
• Weight: 1.9 lbs
• Length: 7.2 inches
• Width: 4.9 inches
• Height: 2.7 inches
• Spring Range: 8-11 psi
• Temperature Range: 35°F to 250°F
• Connection: Flare
