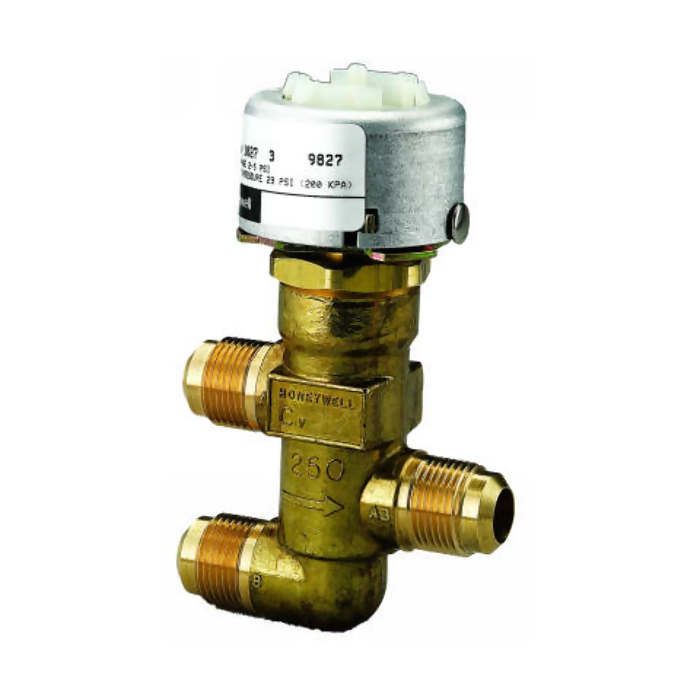

Honeywell VP526A1035/U Pneumatic Pressure Water Valve 2.5 Cv

Product Description

The Honeywell VP526A1035/U is a pneumatic pressure water valve designed for effective control of hot and cold water in HVAC systems. This three-way mixing valve has a capacity of 2.5 Cv and is suitable for use in air conditioning and fan coil systems.

• Small size allows for installation in tight spaces.
• Includes a direct-acting, rolling diaphragm actuator with a high-temperature plastic air connector.
• Features a stainless steel stem and spring-loaded Buna-N V-ring packing that is replaceable.

Product Highlights

Ideal for controlling fluid flow, the valve maintains a consistent flow rate across its full range of travel.

Product Information

Standard Information

• Product Type: Pneumatic Valve
• Brand: Honeywell

Technical Specifications

• Dimensions: Four and seven-eighths inches high x three and one-eighth inches wide
• Temperature Range: Thirty-five°F to two hundred fifty°F (two°C to one hundred twenty-one°C)
• Connection Size: Five-eighths inch O.D.; Nominal half inch
• Maximum Diaphragm Pressure: Twenty-nine psi
• Spring Range: Two psi to five psi
• Valve Type: Three-way mixing
• Controlled Fluid: Water
