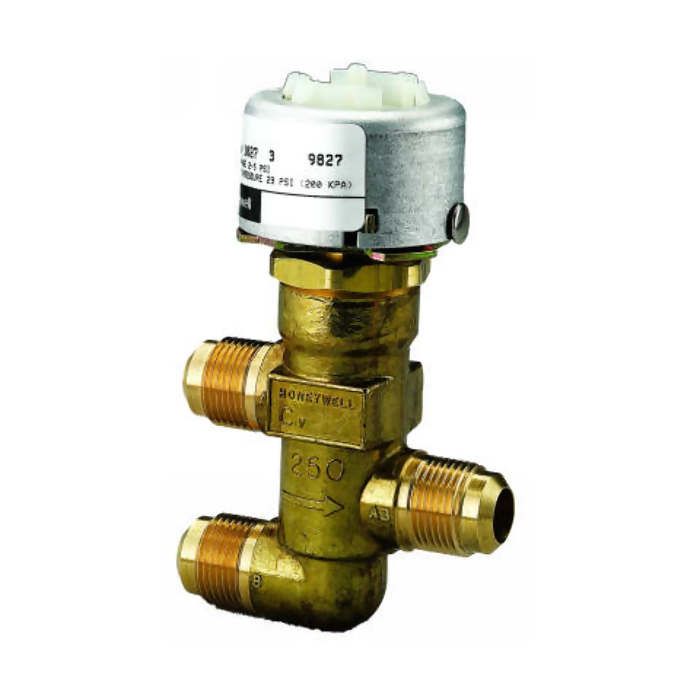

Honeywell VP526A1027/U Pneumatic Pressure Water Valve 1.6 Cv 5/8 in. O.D.

Product Description

The Honeywell VP526A1027/U is a pneumatic pressure water valve designed for precision control in HVAC systems. This three-way mixing valve features a diameter of five-eighths inches and a flow capacity of 1.6 Cv, ideal for regulating hot and cold water in unit air conditioners and fan coil systems.

• Compact size allows for installation in limited spaces.
• Equipped with a direct-acting, rolling diaphragm actuator.
• Integral high-temperature plastic air connector for durability.

Product Highlights

This valve is compatible with various older Honeywell devices, making it a versatile choice for retrofits.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VP526A1027/U

Technical Specifications

• Service: Hot and/or Cold Water
• Operating Conditions: 35 F to 250 F (2 C to 121 C)
• Maximum Diaphragm Pressure: 29 psi
• Dimensions: 4.875 inches high x 3.125 inches wide
• Spring Range: 2 psi to 5 psi
• Body Pressure: 250 psi
• Valve Action: Proportional Normally Open Ports B to AB
• Fluid Control: Water
