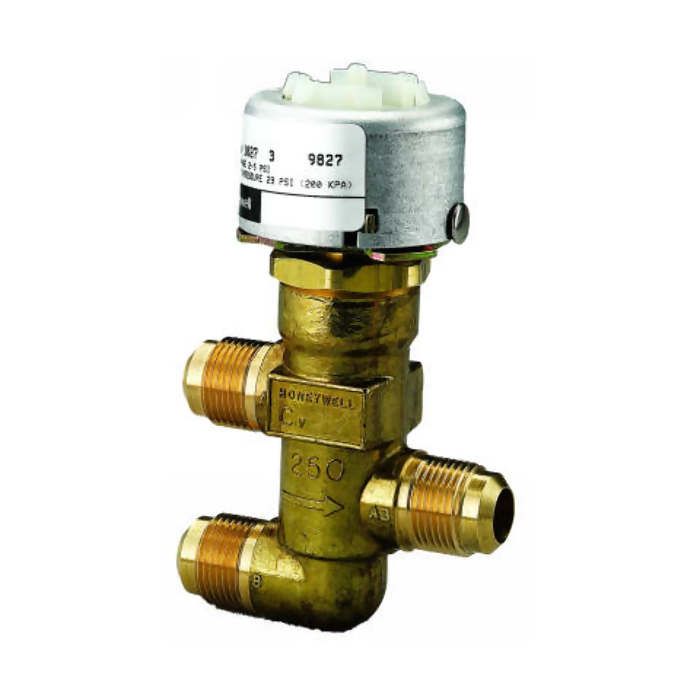

Honeywell VP526A1001/U Pneumatic Pressure Water Valve 3 Way 5/8 in. O.D.

Product Description

The Honeywell VP526A1001/U is a pneumatic pressure water valve designed for effective control of hot and cold water in HVAC systems. This three-way mixing valve features a five eighths inch outer diameter and a capacity of 1.6 Cv. It is ideal for unit air conditioners and fan coil setups.

• Compact design suitable for tight spaces
• Direct-acting diaphragm actuator with a high-temperature air connector
• Replaceable spring-loaded Buna-N V-ring packing

Product Highlights

Efficient control for hydraulic systems with reliable construction.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VP526A1001/U

Technical Specifications

• Service: Hot and/or cold water
• Operating Conditions: 35 F to 250 F (2 C to 121 C)
• Maximum Diaphragm Pressure: 29 psi
• Dimensions: 4.875 inches high x 3.125 inches wide
• Spring Range: 3 psi to 10 psi
• Body Pressure: 250 psi
• Capacity: 1.6 Cv
