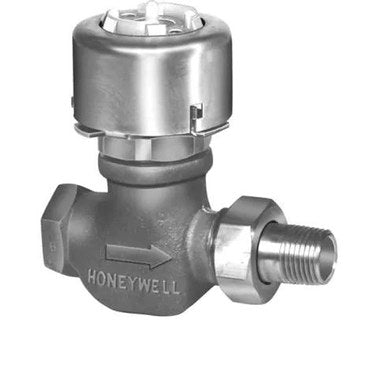

Honeywell VP525C1081/U Valve Angle 3.0 Cv 3-10 PSI 1/2 Inch

Product Description

The Honeywell VP525C1081/U is an angle valve designed for pneumatic control. Its capacity is 3.0 cv and it operates at a pressure range of 3 to 10 psi. The valve's size is one-half inch, making it suitable for various HVAC applications.

• Angle body design for flexible installation options.
• Normally open configuration for consistent flow control.
• Easily serviceable actuator assembly for maintenance efficiency.

Product Highlights

This valve is ideal for two-pipe hot water or steam systems. It allows for proportional control, which enhances system performance and energy efficiency.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VP525C1081/U

Technical Specifications

• Product Type: Angle 3.0 Cv 3-10 PSI
• Size: 1/2 Inch
• Spring Range: 3 psi to 10 psi
• Connection Size: 1/2 Inch NPT
• Body Pressure: 150 psi
• Operating Humidity: 5 to 95% RH
• Temperature Range: 40 F to 240 F
• Shipping Weight: 2.000 lbs
