Product Description

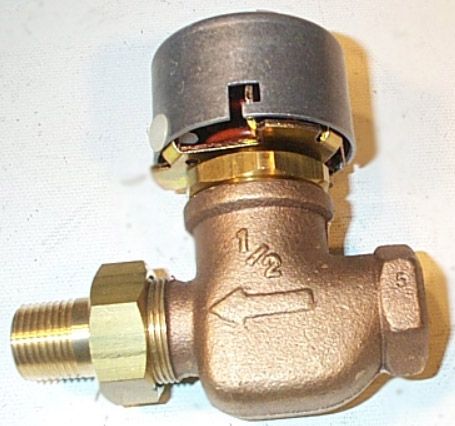

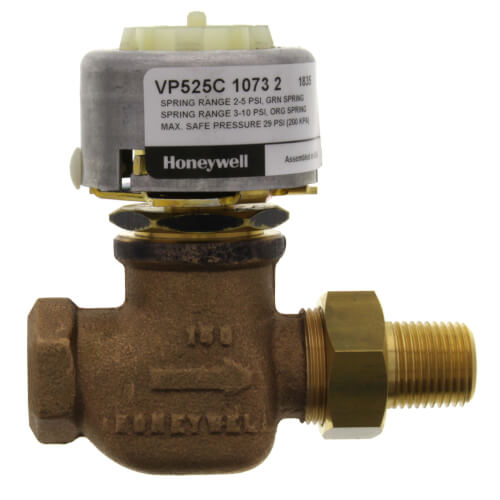

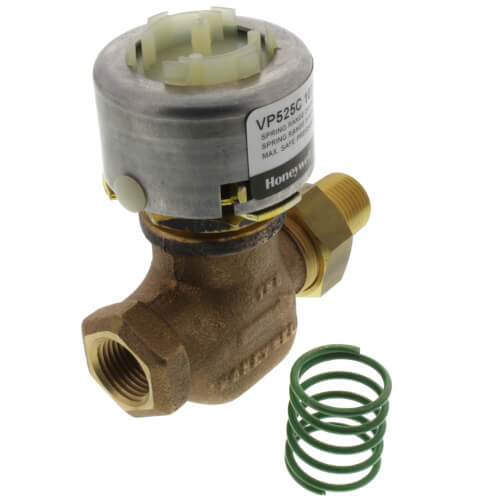

The Honeywell VP525C1073 is a two-way pneumatic radiator valve designed to provide proportional control of two-pipe hot water or steam systems. It features a normally-open, single-seated design with a straight-through body construction, ensuring efficient 3.0 Cv flow in both steam and water applications.
- Optimal temperature control and energy efficiency within a 3-10 PSI operation range.
- Durable brass body and corrosion-resistant finish for extended use in demanding environments.
- Easy integration with existing piping systems due to its 1/2 inch NPT connection.
Product Highlights
This valve is part of Honeywell's reliable line of heating and cooling controls, known for their robustness and precision in industrial settings.
Product Information
Standard Information
-
Brand: Honeywell
-
MPN: VP525C1073
Technical Specifications
-
Valve Type: Pneumatic Radiator
-
Body Material: Bronze
-
Connection Type: NPT
-
Valve Size: 1/2 inch
-
Flow Capacity: 3.0 Cv
-
Max Pressure: 15 psi Water Steam Pressure, 125 psi Water Oil Gas
-
Weight: 4 lbs
