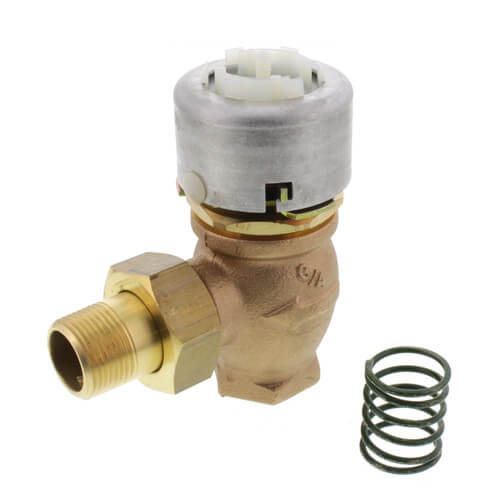

Honeywell VP525C1057/U Pneumatic Radiator Valve 2 Way 3/4 in 3 Cv

Product Description

The Honeywell VP525C1057/U is a pneumatic radiator valve designed to control hot water or steam in a two-pipe system. This valve features a normally open mechanism and is equipped with a compact design, making it suitable for tight spaces.

• Two-way angle design for efficient control
• Proportional control for precise operation
• Easily replaceable actuator assembly for maintenance

Product Highlights

This valve operates efficiently in systems requiring temperature control of hot water or steam. It can handle a wide range of conditions, making it a versatile choice for HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VP525C1057/U

Technical Specifications

• Size: 3/4 inches
• Flow Rate: 3 Cv
• Pressure Range: 3 psi to 10 psi
• Operating Temperature: 40°F to 240°F
• Maximum Diaphragm Pressure: 30 psi
• Connection Type: MNPT
• Body Pattern: Two-way
• Shipping Weight: 3.000 lbs
