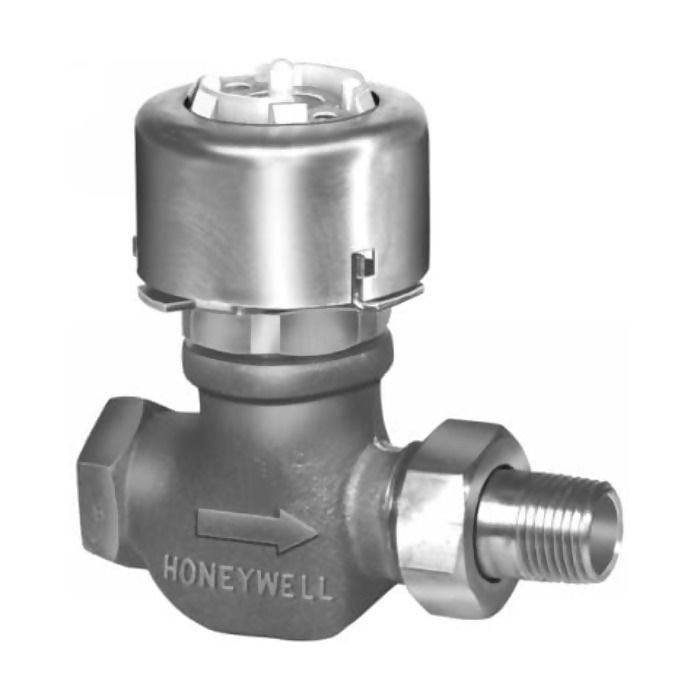

Honeywell VP525C1016/U Pneumatic Radiator Valve 2 Cv (1/2 in.) Replacement MPN

Product Description

The Honeywell VP525C1016/U is a pneumatic radiator valve designed for effective fluid control in heating systems. This unit is designed to operate with hot water or steam, providing a reliable solution for heating applications. The valve features a normally open design with a flow capacity of 2 Cv.

• Unitary valve type for direct control
• Compact design suitable for space-constrained installations
• Allows for easy actuator replacement

Product Highlights

The Honeywell VP525C1016/U valve is ideal for commercial applications needing efficient temperature regulation. Its design supports quick replacement and minimal downtime.

Product Information

Standard Information

• Service: Hot Water or Steam
• Body Pattern: Straight
• Flow Capacity (Cv): 2

Technical Specifications

• Maximum Temperature: 240°F
• Minimum Temperature: 40°F
• Operating Conditions: 40°F to 240°F (4°C to 116°C)
• Maximum Diaphragm Pressure: 30 psi
• Connection Size: 1/2 in. NPT
• Spring Range: 3 psi to 10 psi
• Valve Action: Proportional Normally Open
• Controlled Fluid: Steam, Water
