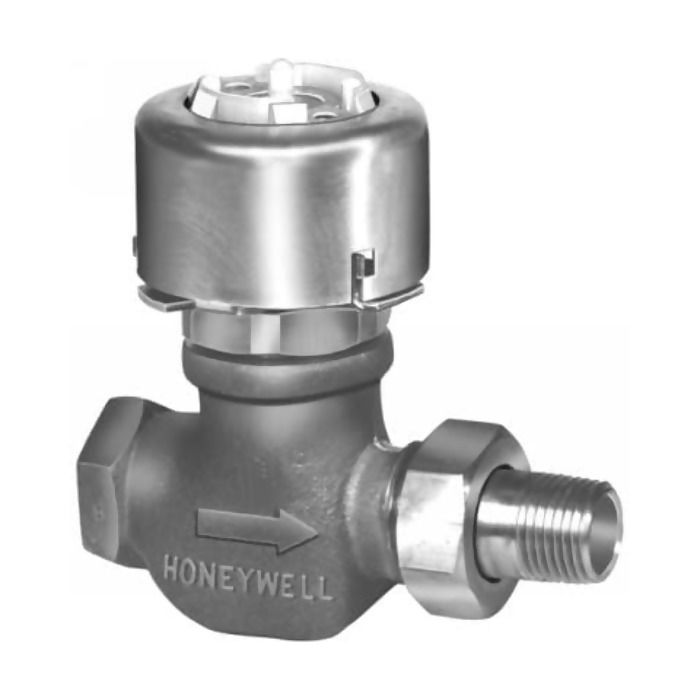

Honeywell VP525C1008/U Pneumatic Radiator Valve 1/2 in 0.63 Cv Valve

Product Description

The Honeywell VP525C1008/U is a pneumatic radiator valve designed for proportional control in hot water or steam systems. This valve features a two-way design and is suitable for various application requirements with a capacity of 0.63 Cv. The unit is compact, making it ideal for installations where space is limited.

• Available in different capacities and spring ranges.
• Easily replaceable actuator assembly for service convenience.
• Can be repacked without system shutdown.

Product Highlights

This valve provides reliable performance for HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VP525C1008/U

Technical Specifications

• Service: Hot Water or Steam
• Operating Conditions: 40 F to 240 F (4 C to 116 C)
• Maximum Diaphragm Pressure: 30 psi
• Dimensions: 4.875 inches high x 3.75 inches wide
• Connection Size: 1/2 inch NPT
• Body Pattern: Two-way
• Spring Range: 3 psi to 10 psi
• Valve Action: Proportional Normally Open
