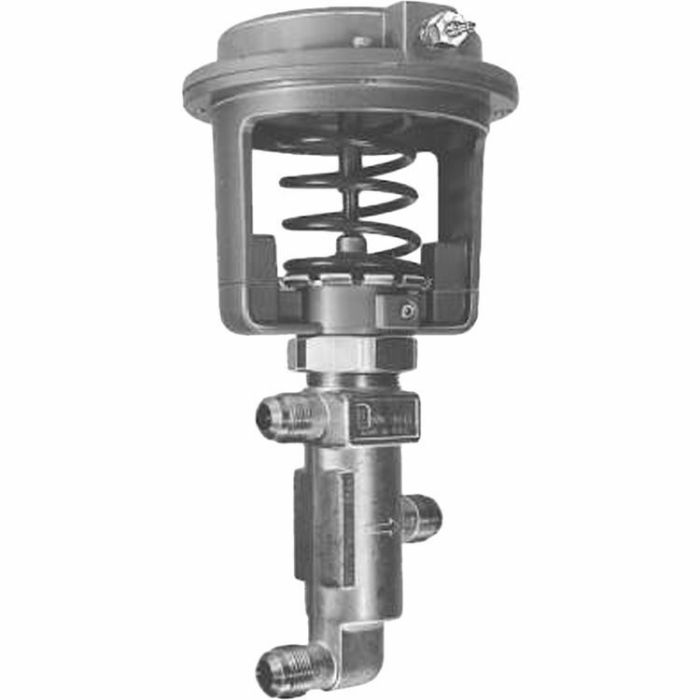

Honeywell VP522A1005/U Pneumatic Sequencing Water Valve 3/8 O.D. Flare 1.5 Cv Port A/B

Product Description

The Honeywell VP522A1005/U is a pneumatic sequencing water valve designed for precise control in HVAC systems. This valve operates with a three-way mixing capability and is suitable for managing the flow of both hot and cold water. Its robust construction and efficient operation make it a reliable choice for controlling water flow in fan-coil and induction units.

• Three-way mixing, 1.5 Cv capacity for efficient operation.
• Corrosion-resistant materials and molded-in composition discs for effective shut-off.
• Flare connections facilitate easy and quick installation.

Product Highlights

This valve is designed for durability and seamless functionality in commercial building controls.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VP522A1005/U

Technical Specifications

• Service: Hot and/or Cold Water
• Operating Conditions: 35 F to 250 F (2 C to 121 C)
• Maximum Diaphragm Pressure: 25 psi
• Dimensions: 9 7/8 in. high x 5 1/8 in. diameter
• Connection Size: O.D. 1/2 in.; Nominal 3/8 in.
• Spring Range: 3 psi to 11.5 psi
• Capacity (Cv): Port A: 1.5 Cv, Port B: 1.5 Cv
• Body Pressure: 250 psi
