Honeywell VP513B1053/U Pneumatic Water Valve 2 Way 5/8 O.D. 1/2 in. Nominal

Product Description

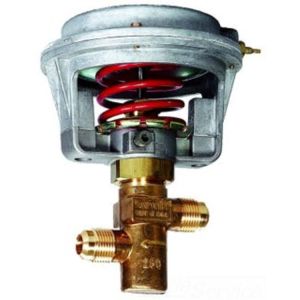

The Honeywell VP513B1053/U is a pneumatic water valve designed for effective control of hot and chilled water flows. This valve features a two-way design and is compatible with standard HVAC systems. It operates at a pressure range of nine to thirteen psi and supports a flow capacity of 2.5 Cv.

• Equipped with a rotating actuator for optimal alignment.
• Includes a molded replaceable composition disc for tight shut-off.
• Features flare tube connections for easy installation.

Product Highlights

This valve is suitable for unit air conditioners and can replace older Honeywell devices as well as those from other brands like Johnson and Powers.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VP513B1053/U

Technical Specifications

• Service: Hot and/or chilled water
• Operating Conditions: 35 F to 250 F (2 C to 121 C)
• Maximum Diaphragm Pressure: 25 psi
• Dimensions: 6.875 inches high x 5.125 inches diameter
• Air Connections: 1/8 inch NPT
• Valve Type: Unitary
• Body Pressure: 250 psi
• Connections: 5/8 inch O.D. nominal
