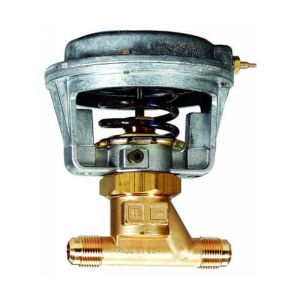

Honeywell VP513A1204/U Pneumatic Water Valve

Product Description

The Honeywell VP513A1204/U is a pneumatic water valve designed for effective control of hot and chilled water systems. This two-way valve features a nominal size of 1/2 inch and an outer diameter of 5/8 inch. It offers a capacity of 2.5 Cv and operates under a pressure range from 3 psi to 10 psi.

• Features a rotating actuator for precise alignment of air connections.
• Equipped with a replaceable composition disc for optimal shut-off capability.
• Designed for small spaces with flare tube connections.

Product Highlights

This valve is ideal for proportional control applications in commercial building management and is compatible with various older models from leading brands.

Product Information

Standard Information

• Service: Hot and/or Chilled Water
• Manufacturer: Honeywell

Technical Specifications

• Dimensions: 5.75 inches high x 5.125 inches diameter
• Operating Conditions: 35 F to 250 F (2 C to 121 C)
• Maximum Diaphragm Pressure: 25 psi
• Air Connections: 1/8 inch NPT
• Body Pressure: 250 psi
