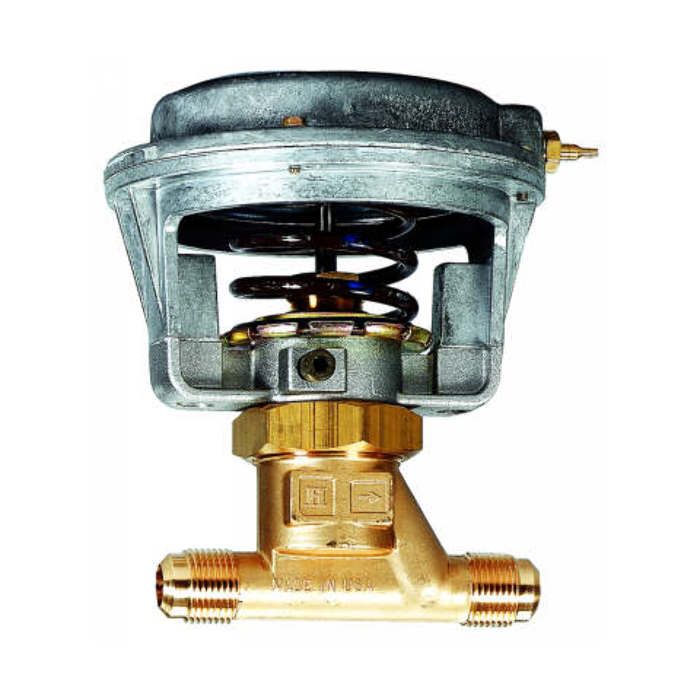

Honeywell VP513A1048/U Pneumatic Water Valve 2 Way 7/8 in. O.D. 3/4 in. Nominal 2.5 Cv

Product Description

The Honeywell VP513A1048/U is a pneumatic water valve designed for efficient control in HVAC applications. This unit features a two-way design with a seven-eighths inch outer diameter and a nominal three-quarter inch connection. The valve operates at a capacity of 2.5 Cv, suitable for both hot and chilled water systems.

• Two-way, straight-through design for optimal flow.
• Rotating actuator aligns with control air piping.
• Molded disc ensures tight shut-off.

Product Highlights

This valve is engineered for proportional control, providing reliable operation in various temperature and pressure conditions.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VP513A1048/U

Technical Specifications

• Dimensions: 5.75 inches high x 5.125 inches diameter
• Temperature Range: 35 F to 250 F
• Connection Size: O.D. seven-eighths inch; nominal three-quarter inch
• Spring Range: 3 psi to 10 psi
• Capacity (Cv): 2.5
• Maximum Actuator Pressure: 250 psi
• Maximum Diaphragm Pressure: 25 psi
• Controlled Fluid: Water
