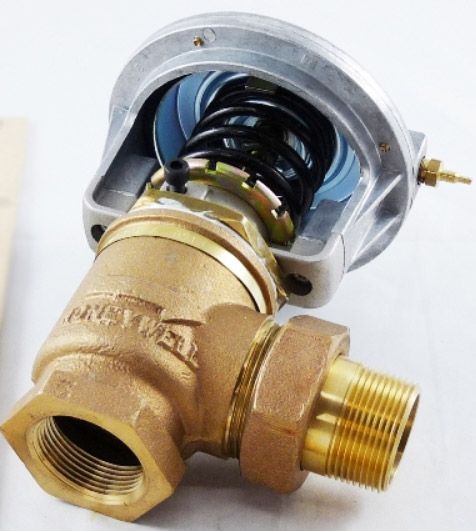

Honeywell VP512A1783 1-1/4 Inch Unit Vent Pneumatic Control Valve 16 Cv

Product Description

The Honeywell VP512A1783 is a pneumatic unit ventilator valve designed to provide precise control of steam and hot water in unit ventilator applications. This single-seated valve operates in a normally-open angle configuration and features a robust body constructed from bronze for long-lasting performance.

• Angle pattern for improved flow direction
• Operates with a spring range of 3-8 psi and a flow coefficient of 16 Cv
• Ideal for proportional control in building management systems

Product Highlights

Engineered for reliability, the valve includes a self-adjusting, spring-loaded Teflon packing and a replaceable brass seat that ensures tight shut-off and easy maintenance. Its design allows for back-seating which facilitates repacking without the need to shut down or drain the system.

Product Information

Standard Information

• Brand: Honeywell
• Model: VP512A1783

Technical Specifications

• Body Material: Bronze
• Valve Size: 1-1/4 inches
• Max Pressure: 15 psi WSP, 125 psi WOG
• Flow Capacity (Cv): 16
• Spring Range: 3 psi to 8 psi
