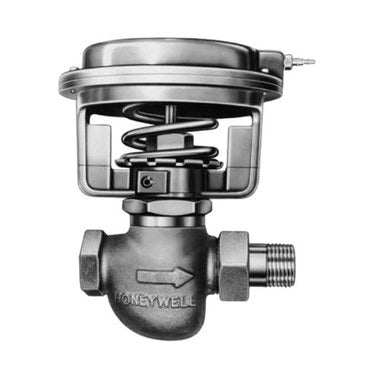

Honeywell VP512A1767/U Vent Valve Unit Straight Body 16.0 Cv 1-1/4 Inch 3 to 8 PSI

Product Description

The Honeywell VP512A1767/U is a vent valve designed for efficient control of steam and hot water in unit ventilator applications. This valve features a straight body design and a capacity of 16.0 Cv, making it suitable for various installations. It operates effectively within a pressure range of three to eight PSI.

• Normally open design for steady operation.
• Molded replaceable disc ensures tight shut-off.
• Integral union connection simplifies installation.

Product Highlights

This valve provides proportional control for heating applications, ensuring optimal energy efficiency. Its robust construction includes a replaceable brass seat and self-adjusting packing.

Product Information

Standard Information

• Brand: Honeywell
• Product Type: Unit Straight Body 16.0 Cv

Technical Specifications

• Size: 1-1/4 inches
• Pressure Range: 3 to 8 PSI
• Dimensions: 5.125 inches diameter x 7.6875 inches high
• Shipping Weight: 8.000 lbs
• Body Pattern: Two-way, Straight-through
• Connection Type: External NPT Union
• Valve Action: Proportional Normally Open
• Controlled Fluid: Steam, Water
