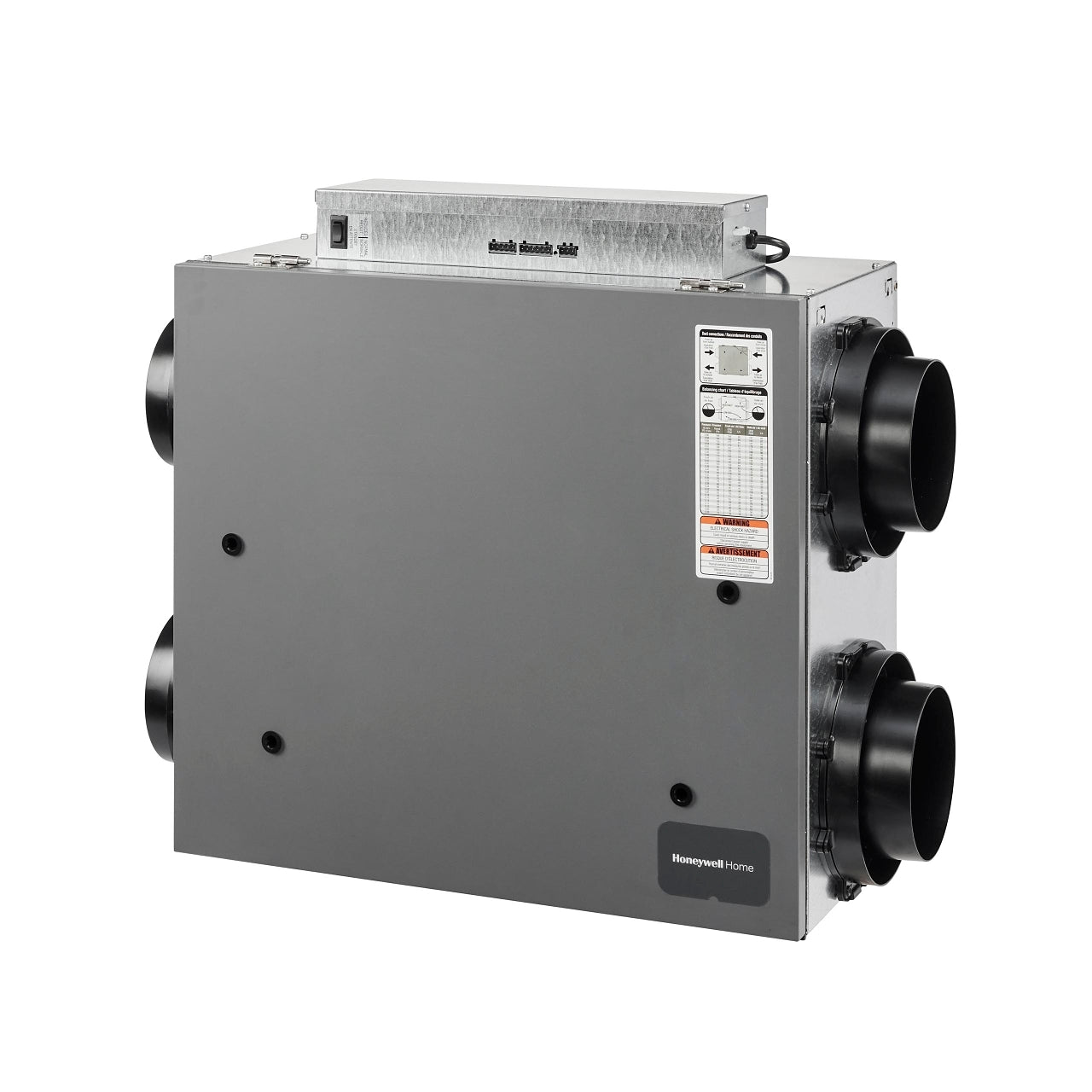

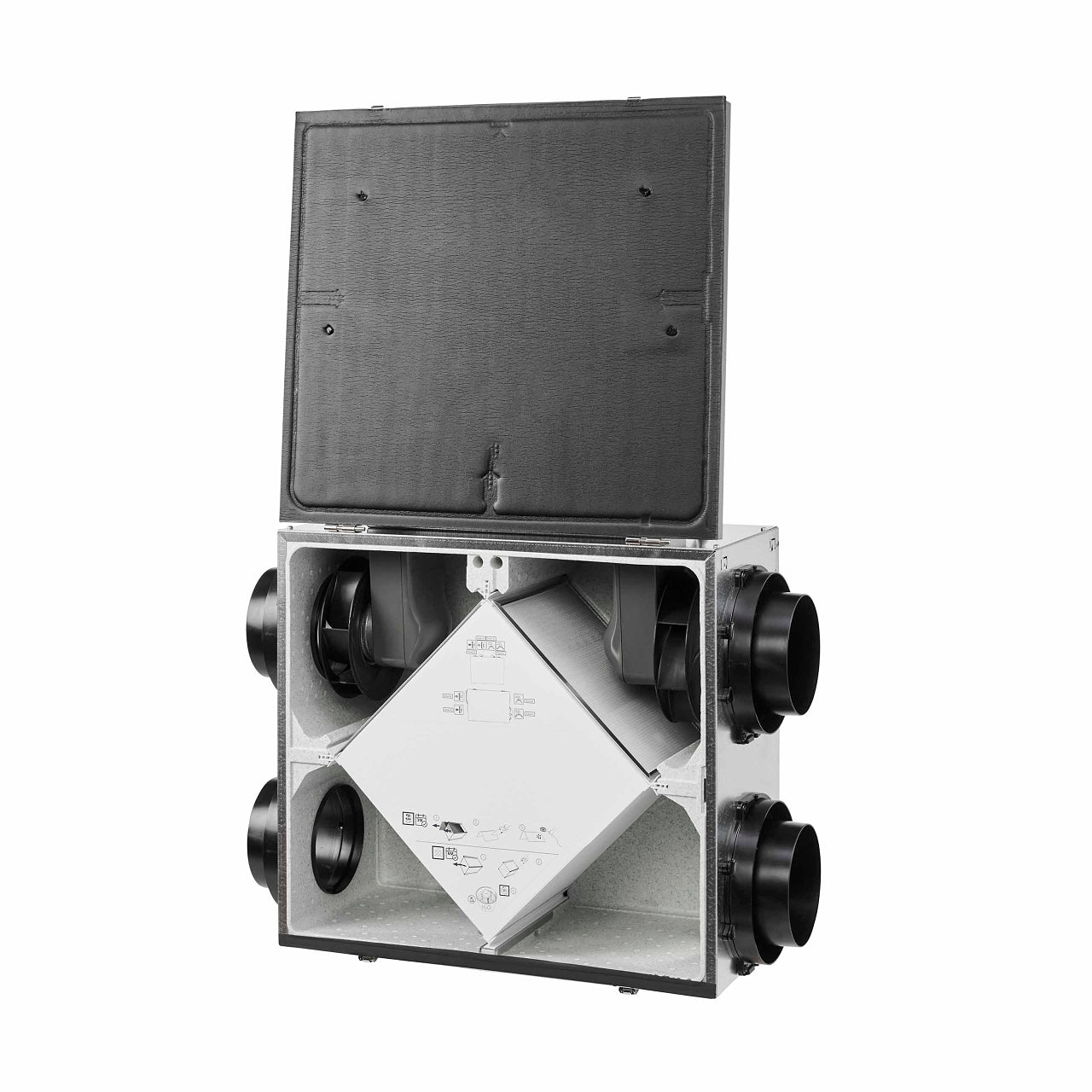

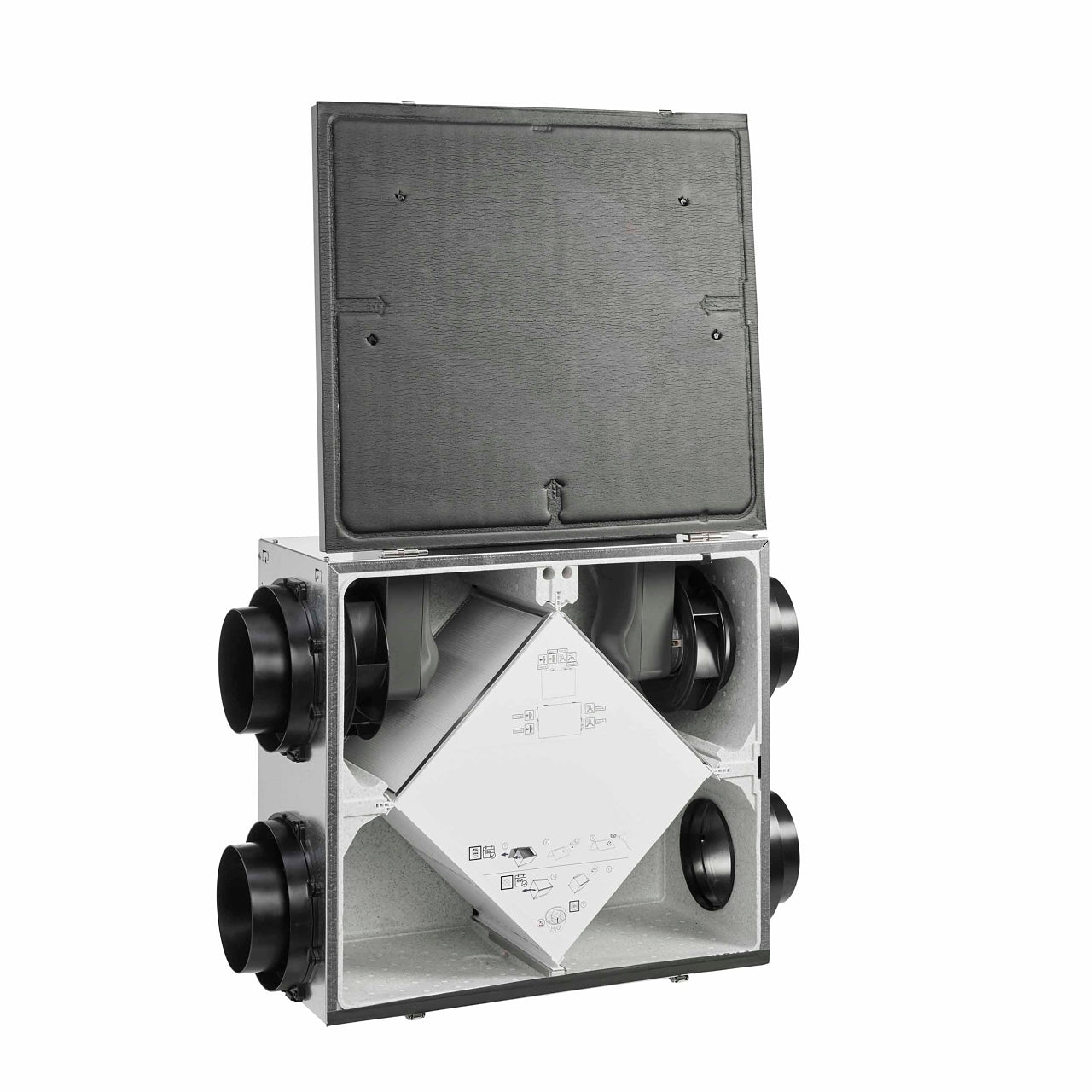

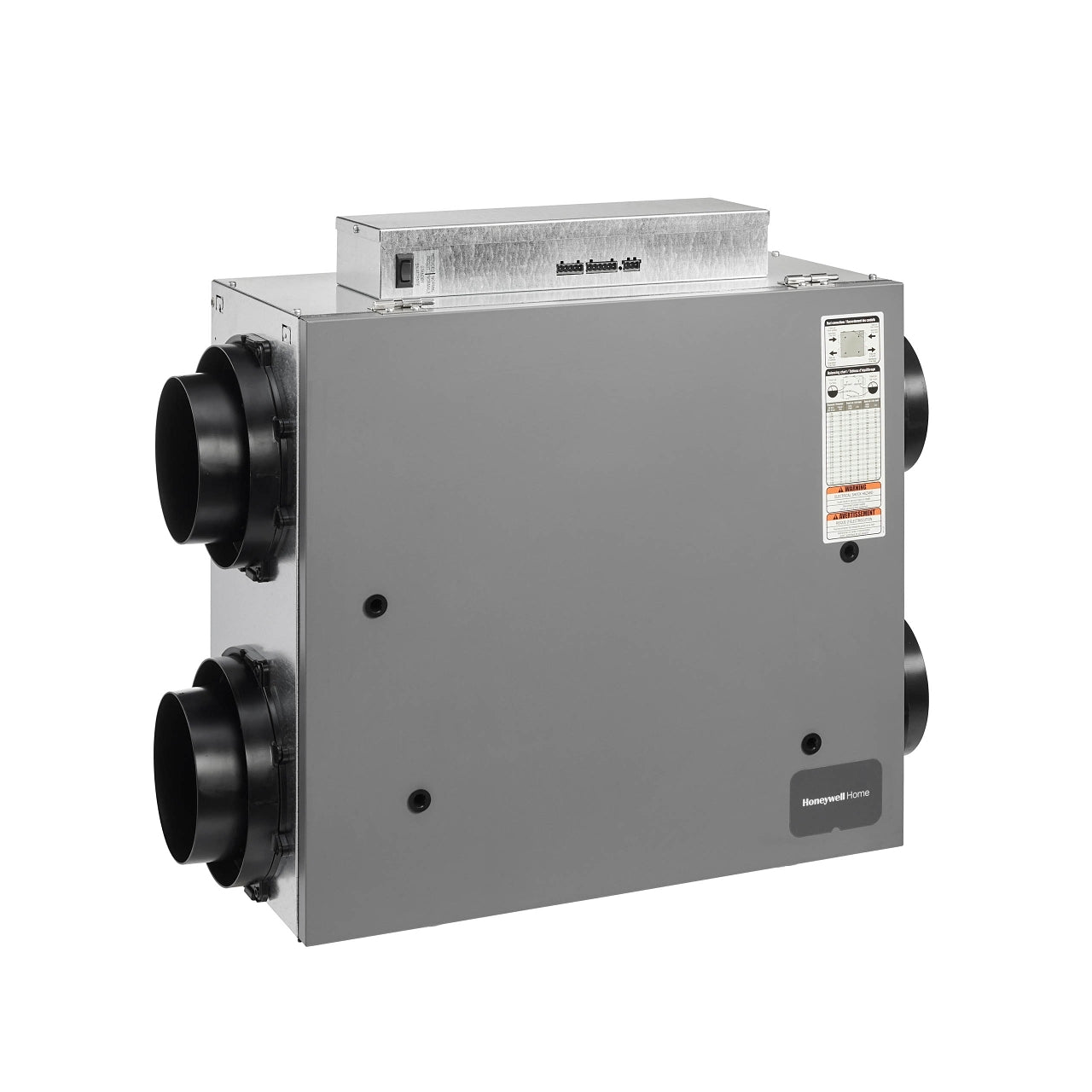

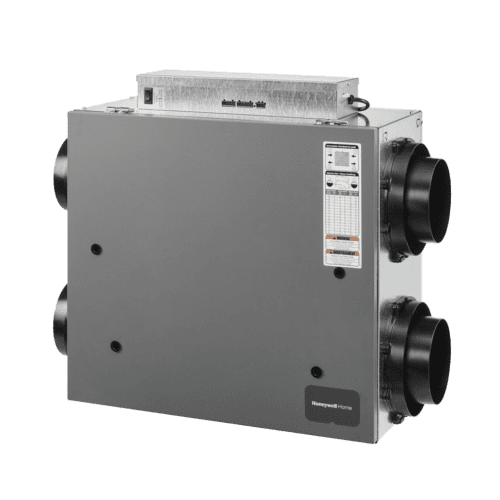

HONEYWELL VNT5200E2000 Energy Recovery Ventilator

Product Description

The Honeywell VNT5200E2000 is an energy recovery ventilator that efficiently exchanges stale indoor air with fresh outdoor air. This process effectively reduces indoor air pollutants and eliminates lingering odors. Designed to work seamlessly with central heating and air systems, this unit avoids the need for overhead ducts. It also features moisture transfer between air streams and recovers sensible heat from exhaust air.

• Exchanges stale air for fresh air for improved indoor air quality.
• Transfers moisture, maintaining comfort levels.
• Compatible with central heating and air systems for easy integration.

Product Highlights

This ventilator enhances indoor air quality while maintaining energy efficiency.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VNT5200E2000

Technical Specifications

• Ventilation Type: ERV
• Airflow Capacity: 200 CFM
• Voltage: 120 Volts
• Frequency: 60 Hz
• Current Draw: 1.4 A
• Product Width: 16.63 inches
• Product Height: 21.44 inches
• Product Length: 29.5 inches
• Weight: 57 lb
• Warranty: 5 Years
• Includes: Hanging Chain Kit, Ventilator, Hardware Kit, 1/2 inch Drain Hose and Drain Fitting, External Damper Wire harness, Wiring Terminal Blocks, Duct Collars, Installation Guide
• Approvals and Standards: Meets ASHRAE 62.2 Standards, HVI certified, CSA certified
• Ambient Relative Humidity (Min): 0%
• Ambient Relative Humidity (Max): 99%
• Defrost Control: Defrost
• Maximum Static Pressure: 0.8 WC
• Sensible Recovery Efficiency: 67-70 %
• Moisture Transfer Ratio: 58 %
• Duct Connection Diameter: 6 inches
• Amperage: 1.5
• Hertz: 60
• Apparent Sensible Effectiveness (ASEF): 0.69
