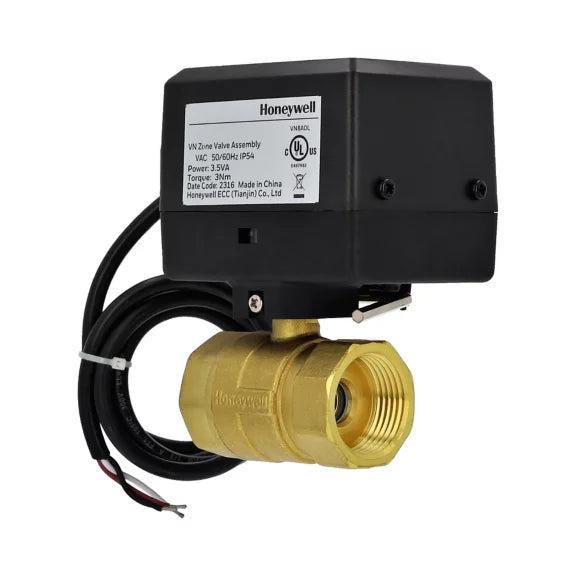

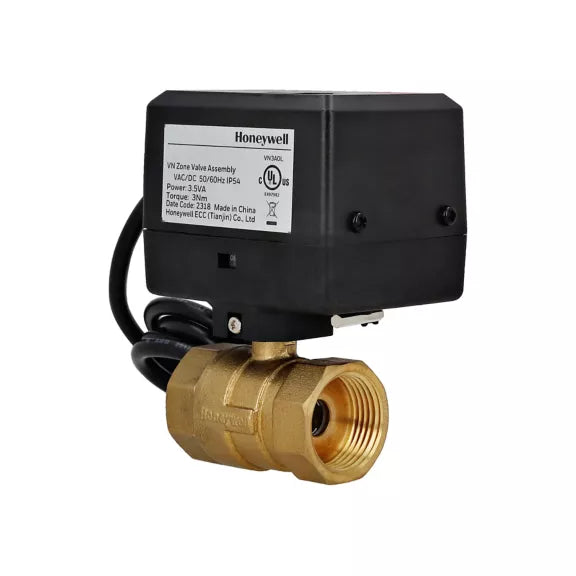

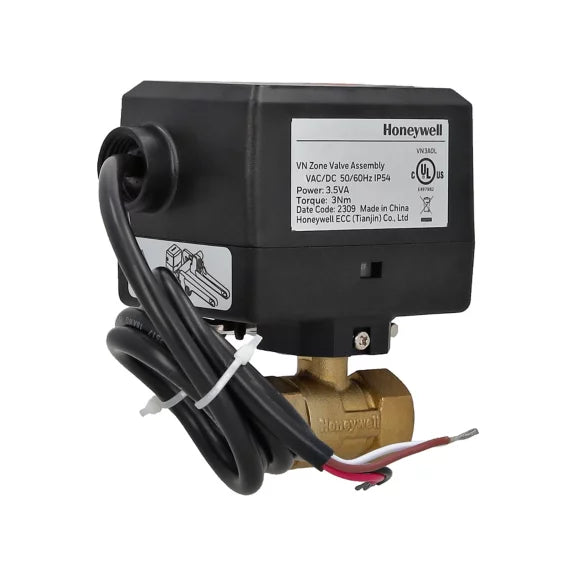

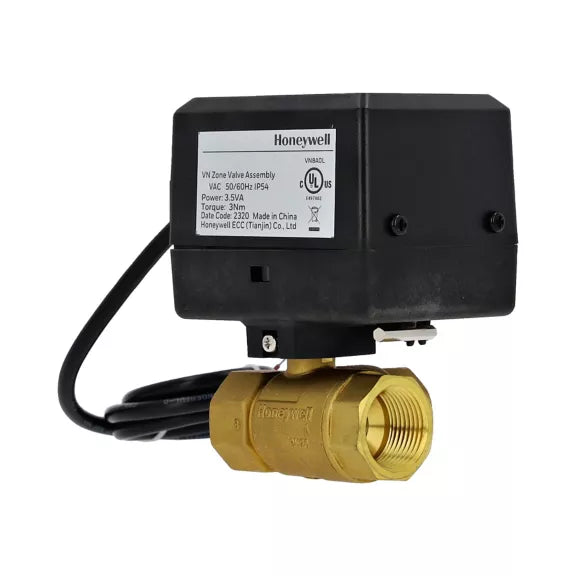

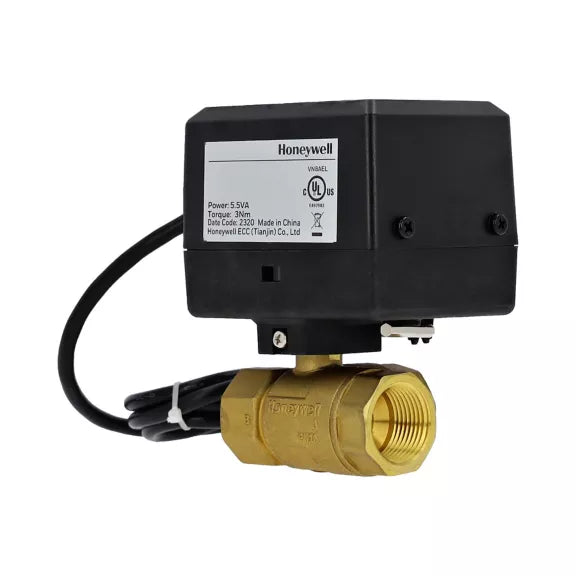

Honeywell VN32A15NTFL VN Series Zone Valve

Product Description

The Honeywell VN32A15NTFL is a 2-way ball valve paired with an electronic rotary fail-safe actuator assembly. It supports 2-position or modulating control of hot or chilled water, including solutions containing up to 50% glycol, in HVAC systems. This valve is ideal for fan coil units, variable air volume systems, unit heaters, reheat coils, radiators, and chilled beams. The internal connections are NPT.

• 2-way valve with 1/2 inch internal NPT connections.
• Includes a 24Vac/dc modulating actuator with fail-safe features.
• Compatible with cold, hot water, and solutions with up to 50% glycol.

Product Highlights

Compact design suitable for a variety of HVAC applications, ensuring reliable operation and control.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• MPN: VN32A15NTFL
• Valve Type: 2-Way
• Connection Type: 1/2 inch Internal NPT
• Actuation Type: Electronic Fail-Safe
• Control Type: Modulating
• Input Voltage: 24Vac/dc
• Suitable Medium: Cold, hot water, or up to 50% glycol
• Enclosure Rating: IP54
• Electric Shock Protection: Class II
• Open/Close Time: Less than 40 seconds
• Fail-Safe Time: Less than 15 seconds
• Certifications: UL/cUL, UL 60730-1, UL 60730-2-14, CSA E60730-1:15, CSA E60730-2-14
• Production Status: Active
• Unit of Measurement: Each
• Condition: New
