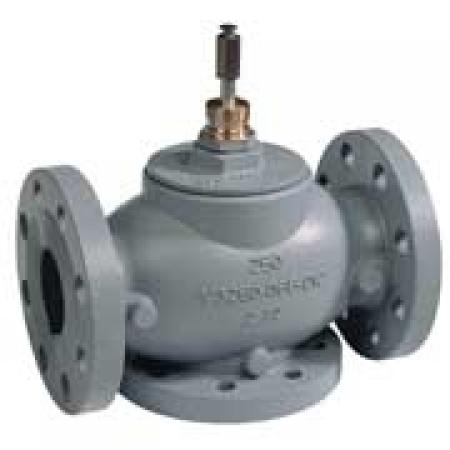

Honeywell VGF32EM50 Valve ANSI 250 Three-Way Mixing Valve

Product Description

The Honeywell VGF32EM50 Valve is designed for precise control in HVAC systems. This three-way mixing valve, with MPN VGF32EM50, is suitable for hot water or chilled water-glycol solutions. It ensures accurate positioning with equal percentage flow characteristics.

• Compatible with various actuators
• Used in HVAC for mixing or diverting
• Durable cast iron construction

Product Highlights

This Honeywell ANSI 250 valve is ideal for HVAC systems, providing precise control and efficiency. It can handle a range of fluid temperatures and pressures, making it versatile for heating and cooling applications.

Product Information

Standard Information

• Brand: Honeywell
• Product Type: Valve

Technical Specifications

• MPN: VGF32EM50
• Size: 5 inches
• Material: Cast iron
• Flow Type: Equal Percentage
• Valve Type: Globe
• Application: Mixing
• Bonnet Size: 1-7/8 inches
• Stem Travel: 1-1/2 inches
• Body Pattern: 3-Way
• Valve Action: Mixing, Step up to close A-AB
• Leakage Rating: Port A seat leakage: 0.5%, Port B seat leakage 1.0%
• Connection Type: Flanged x Flanged
• Static Pressure: ANSI 250
• Connection Method: Flanged
• ANSI/ASME Rating: 250
• Controlled Fluid: Chilled or hot water with up to 50% glycol
• Max Differential Pressure: 13 psi
• Shipping Depth: 72 inches
• Shipping Width: 30 inches
• Shipping Height: 30 inches
• Flow Capacity (Cv): 320
• Max Pressure: 400 psi
• Fluid Temperature Range: 20 to 250 degrees Fahrenheit
• Weight: 184 lbs
