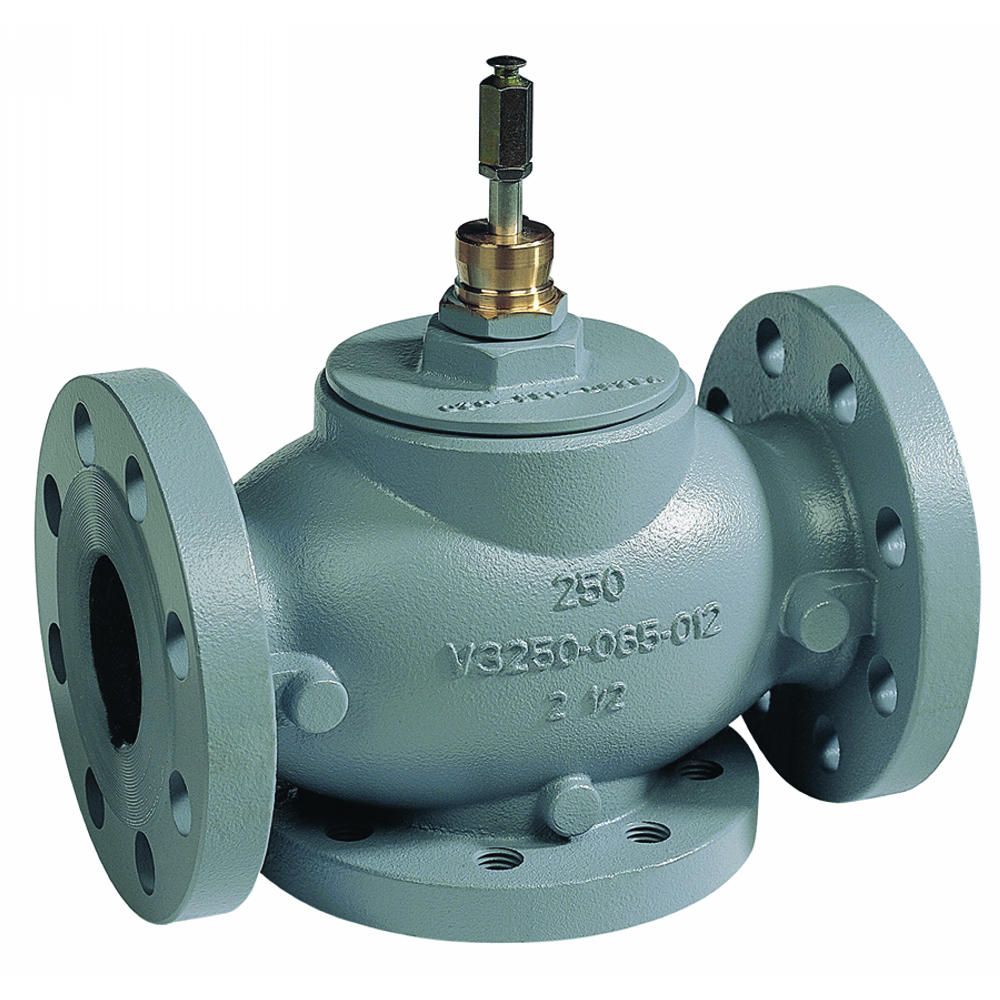

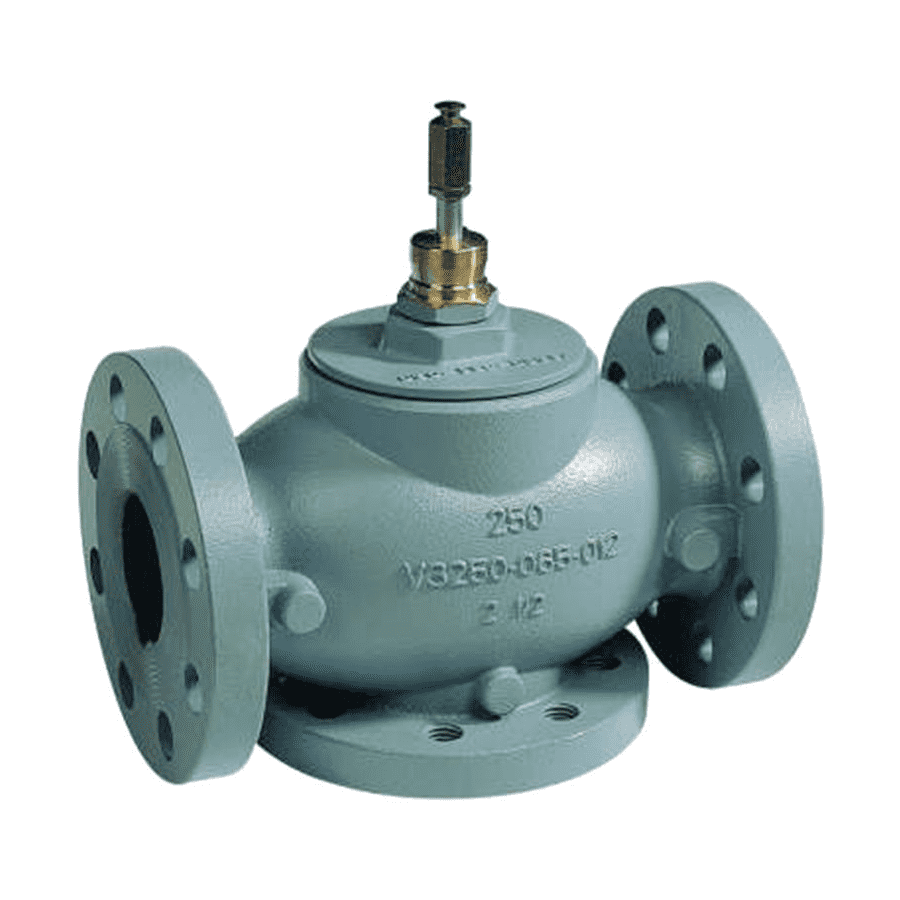

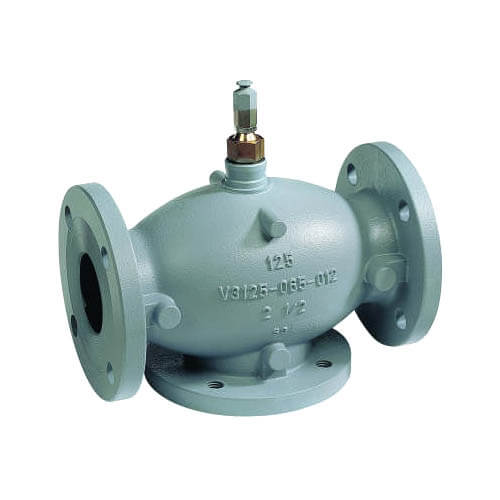

Honeywell VGF31EM60 Globe Valve, 3 Way, 6 in. 370 Cv

Product Description

The Honeywell VGF31EM60 is a flanged, 3-way globe valve designed for HVAC applications. This valve has a size of six inches and a Cv flow coefficient of 370. It features a cast iron body with stainless steel components, suitable for various fluid applications including steam, hot water, and chilled water-glycol solutions.

• Meets ANSI Class 125 and Class 250 standards.
• Designed with metal-to-metal seating for durability.
• Compatible with fluid temperatures ranging from twenty to two hundred fifty degrees Fahrenheit.

Product Highlights

The valve is ideal for mixing applications and features flanged end connections for easy installation and maintenance.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VGF31EM60

Technical Specifications

• Service: Steam, hot water, or chilled water-glycol solutions up to fifty percent concentrations
• Close-Off Pressure: 13 psi
• Flow Characteristic: Equal percentage
• Operating Temperature: 35 F to 130 F (2 C to 66 C)
• CV: 370
• Pipe Size: 6 in
• Connection: Flanged
• Max Pressure (PSI): 175
