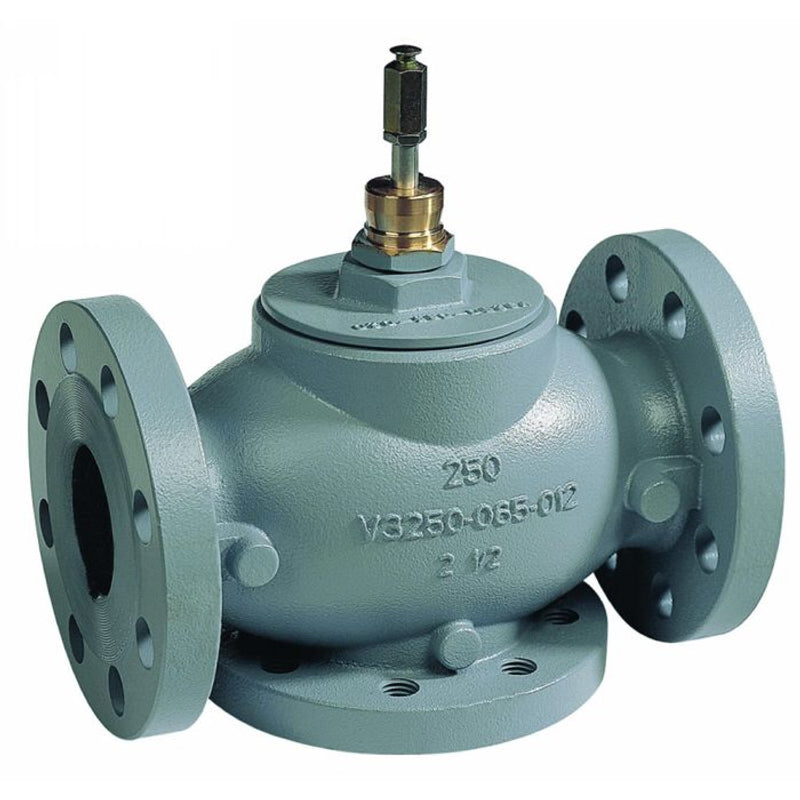

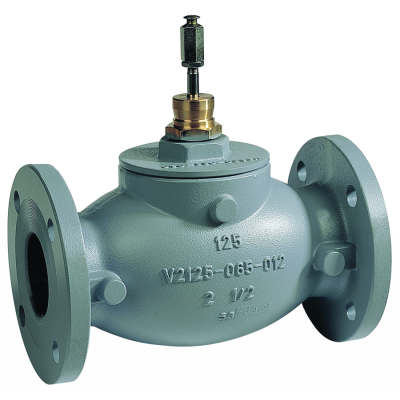

Honeywell VGF22ES60 2-Way Flanged Globe Valve

Product Description

The Honeywell VGF22ES60 is a 2-way flanged globe valve suitable for use in commercial HVAC systems. This valve can control steam, hot water, or chilled water-glycol solutions with a concentration of up to fifty percent in closed-loop systems.

• Two-way design for effective flow control
• Constructed with ANSI Class 125 cast iron bodies
• Features equal percentage flow characteristics

Product Highlights

This valve is designed for modulating control and can be used in various HVAC applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VGF22ES60

Technical Specifications

• Application: HVAC
• Valve Type: Globe Valve
• Pattern: 2-Way
• Connection Type: Flanged
• Size: 6 inches
• Material: Cast Iron
• Trim Material: Stainless Steel
• Flow Characteristic: Equal Percentage
• Flow Coefficient: 400 CV
• Operating Temperature: thirty-five Fahrenheit to one hundred thirty Fahrenheit (two Celsius to sixty-six Celsius)
• Close-Off Pressure: 13 psi
