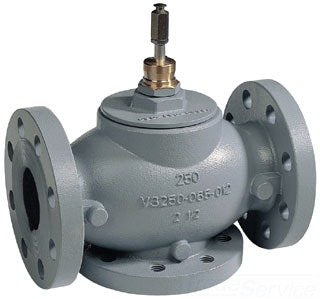

Honeywell VGF22ES40 4 Flanged Globe Valve Power ANSI 250 CV=160

Product Description

The Honeywell VGF22ES40 is a 4-inch flanged globe valve with a high Cv value designed to control the flow of steam, hot water, or chilled water-glycol solutions. This valve features a cast iron body and a bonnet for durability and reliability in demanding industrial settings.

• ANSI Class 250 rating for strength
• Equipped with a PTFE seat and Buna-N O-ring for effective sealing
• Flanged connections for easy installation

Product Highlights

This globe valve is intended for two-position or modulating control in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VGF22ES40

Technical Specifications

• Size: 4 inches
• Flow Capacity (Cv): 160
• Body Material: Cast Iron
• Pressure Rating: ANSI Class 250
• Leakage: ANSI Class III
• Temperature Range: Up to 353°F for steam
• Connection Type: Flanged x Flanged
• Actuator Compatibility: Works with ML6984/7984, ML6420/6425, and Modutrol Motors
