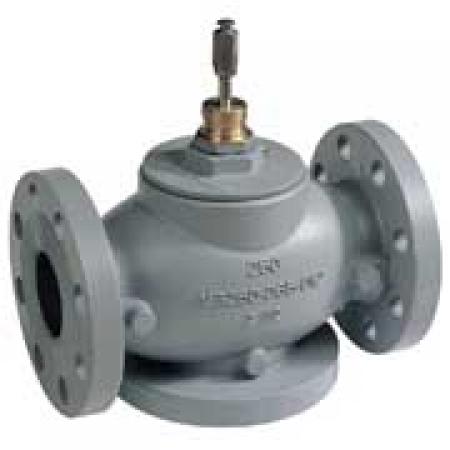

Honeywell VGF22ES30 3 Inch ANSI 250 2-Way Globe Valve CV=120

Product Description

The Honeywell VGF22ES30 Globe Valve is engineered for precise fluid control in HVAC systems. Ideal for both commercial and industrial applications, this valve adjusts fluid flow in systems using steam, hot water, or glycol solutions up to a 50% concentration.

• ANSI Class 250 rating ensuring high durability and performance under demanding conditions.
• Equipped with a universal bonnet, compatible with a variety of actuators.
• Features linear and equal percentage flow characteristics for accurate fluid handling.

Product Highlights

This valve's robust cast iron construction and flanged end connections adhere to ANSI/ISA standards, promoting longevity and seamless installation.

Product Information

Standard Information

• Body Material: Cast Iron ASTM A126 Class B
• Connection Type: Flanged x Flanged

Technical Specifications

• Size: 3 inches
• Flow Capacity (Cv): 120
• Max Pressure (PSI): 400
• Temperature Range (F): 20°F to 250°F, Steam up to 353°F
• Valve Type: 2-Way Globe Valve
• Weight: 87 pounds
