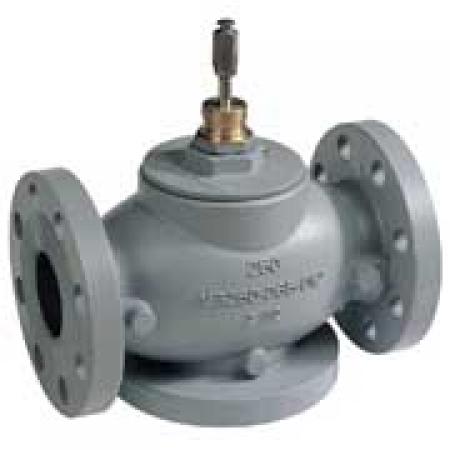

Honeywell VGF22ES25 2 1/2-inch Flanged Valve ANSI 250 Cv63

Product Description

The Honeywell VGF22ES25 is a 2 1/2-inch flanged valve designed for high-flow systems. This adjustable valve can handle steam, hot water, or chilled water-glycol solutions in HVAC systems. The ANSI Class 250 rating supports high-pressure applications, while the Cv rating of 63 ensures optimal flow capacity.

• Two-way flanged valve with equal percentage flow
• ANSI Class 250 rated
• Compatible with various electric and pneumatic actuators

Product Highlights

Durable material for long-lasting use. Secure and leak-proof flanged design. Suitable for high-pressure systems up to 250 psi.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VGF22ES25
• Type: Globe Valve

Technical Specifications

• Flow Capacity: 63 Cv
• Connection Type: Flanged
• ANSI/ASME Rating: 250
• Operating Pressure: Up to 250 psi
• Temperature Range: 20°F to 353°F
• Material: Cast Iron ASTM A126 Class B
• Weight: 59.45 lbs
• Differential Pressure: 69 psi
