HONEYWELL VGF21LS60 2-Way Flanged Globe Valve, Linear

Product Description

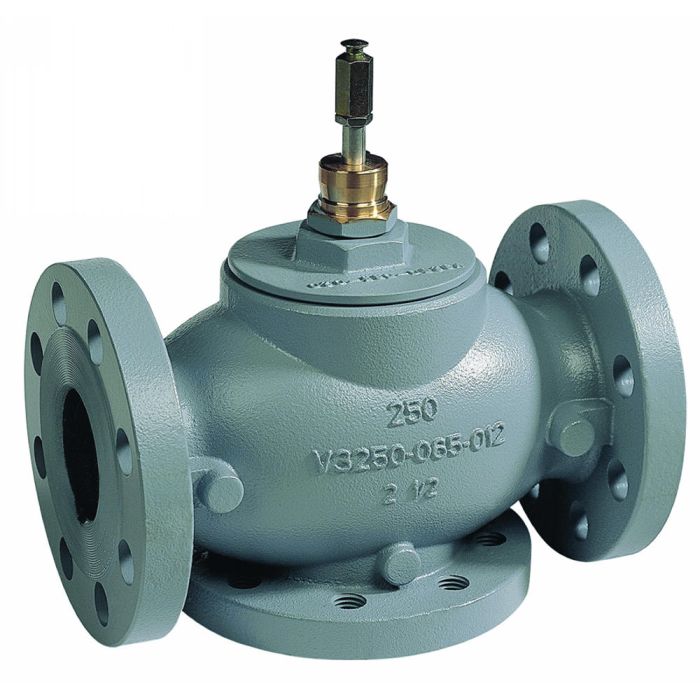

The Honeywell VGF21LS60 is a 2-way flanged globe valve suitable for commercial HVAC systems. It includes a stainless steel trim, designed to work effectively with chilled water/glycol, heating water, and steam applications up to one hundred psig. Constructed with a robust cast iron body, this valve guarantees durability and efficiency for various industrial uses.

• Class 125 and Class 250 cast iron body with flanged end connections
• Compatible with steam, hot water, or chilled water-glycol solutions
• Face-to-face flange dimensions meet ANSI/ISA S7503 standards

Product Highlights

This valve features linear flow characteristics for precise control, making it ideal for various temperature applications.

Product Information

Standard Information

• Manufacturer Part Number: VGF21LS60
• Type: Valve Only

Technical Specifications

• Connection: Flange
• Cv: 400 CV
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 6 inches
• Flow Characteristic: Linear
• Operating Temperature: 35 F To 130 F (2 C To 66 C)
• Close-Off Pressure: 175 psi
