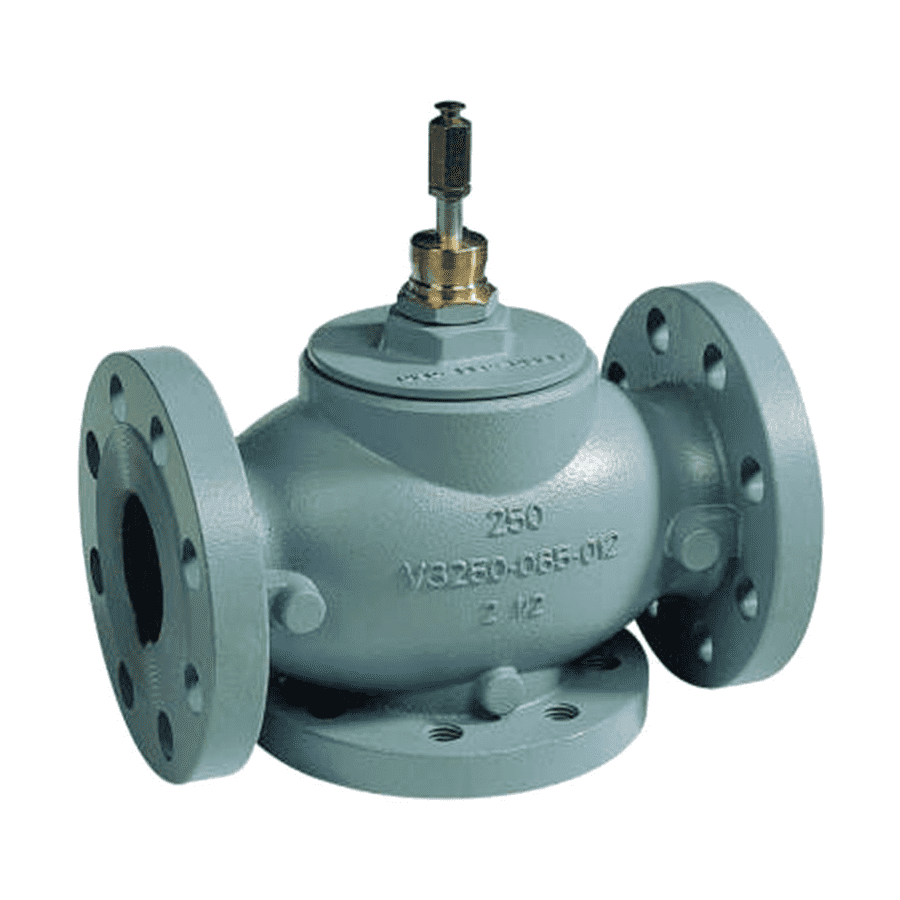

Honeywell VGF21LS50 Globe Valve 2 Way 5 in 320 Cv

Product Description

The Honeywell VGF21LS50 is a globe valve designed for precise control in HVAC systems. It features a two-way design and is suited for steam, hot water, or chilled water applications. This valve has a five-inch size and a flow capacity of 320 Cv.

• Constructed from ANSI Class 125 and Class 250 cast iron
• Compatible with various actuators for easy operation
• Features self-adjusting packing for enhanced performance

Product Highlights

Use this valve for effective temperature control in heating and cooling systems in commercial settings.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VGF21LS50

Technical Specifications

• Service: Steam, hot water, or chilled water-glycol solutions
• Close-Off Pressure: 175 psi
• Flow Characteristic: Linear
• Operating Temperature: 35 F to 130 F
• Body Material: Cast Iron ASTM A126 Class B
• Valve Type: 2-Way
• Connection Type: Flanged
• Dimensions: 5 in pipe size
