Honeywell VGF21LS50 5 inch 2-Way Flanged Globe Valve for HVAC Hydronics

Honeywell VGF21LS50 5 inch 2-Way Flanged Globe Valve for HVAC Hydronics

HONEYWELL
Brand: HONEYWELL
SKU: VGF21LS50
Availability: Out Of Stock
$3,019.89
$3,019.89
Manuals:
LTL Delivery

This product weighs 185 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

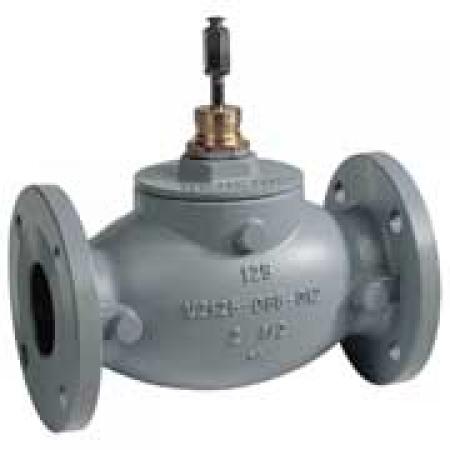

The Honeywell VGF21LS50 globe valve is designed for precise flow control in HVAC and hydronics systems. This valve features ANSI class 125 cast iron construction with flanged end connections, suitable for steam, hot water, or chilled water-glycol solutions up to 50 percent concentration.

  • Equipped with stainless steel trim for extended durability.
  • Boasts ANSI Class III seat leakage for reliable sealing.
  • Supports a wide temperature range, making it ideal for diverse operating environments.

Product Highlights

Optimized for both 2-position and modulating control.

Product Information

Standard Information

  • Brand: Honeywell
  • Model: VGF21LS50

Technical Specifications

  • Control Type: 2-position or modulating
  • Material: Cast Iron ASTM A126 Class B
  • Connection Type: Flanged x Flanged
  • Size: 5 inches
  • Flow Capacity (Cv): 320
  • Max Pressure (PSI): 175
  • Temperature Range (F): Steam up to 353°F, 20°F to 250°F
  • Weight: 113 pounds
