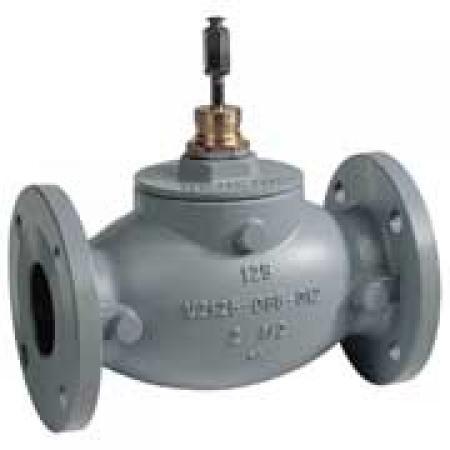

Honeywell VGF21LS25 2-1/2 Flanged Globe Valve 2-WAY ANSI 125 CV63

Product Description

The Honeywell VGF21LS25 is a two and a half inch flanged globe valve designed for efficient flow control in HVAC systems. This valve is suitable for steam, hot water, or chilled water-glycol solutions with a maximum concentration of fifty percent. Its ANSI Class 125 rating ensures compatibility with high-pressure systems while maintaining reliable performance.

• Controls fluid flow in two positions or modulating applications.
• Constructed with a cast iron body and stainless steel trim for durability.
• Meets ANSI/ISA S75.03 standards for face-to-face dimensions.

Product Highlights

The VGF21LS25 is optimized for precise control over temperature and flow, making it suitable for various industrial applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Model Number: VGF21LS25
• Product Type: Valve
• Connection Type: Flanged x Flanged

Technical Specifications

• Size: 2-1/2 inches
• Pressure Rating: ANSI Class 125
• Flow Coefficient (Cv): 63
• Maximum Pressure: 175 PSI
• Temperature Range: 20°F to 250°F, Steam: 353°F
• Body Material: Cast Iron ASTM A126 Class B
• Stem Travel: 3/4 inches
• Shipping Weight: 12 pounds
