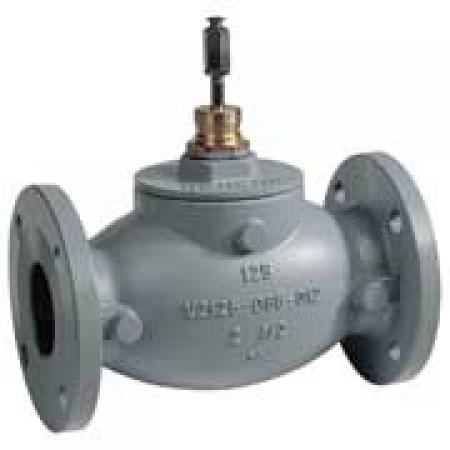

Honeywell VGF21LP50 Flanged Globe Valve HVAC Control 5 Inch

Product Description

The Honeywell VGF21LP50 is a robust flanged globe valve designed for effective control of steam, hot water, and chilled water-glycol solutions in HVAC systems. This valve facilitates precise control and is compatible with a variety of actuator types.

• Cast iron construction with stainless steel trim for durability.
• ANSI Class 125, offering reliable performance under high pressure.
• Pressure-balanced design ensures minimal leakage.

Product Highlights

This valve is engineered to provide exceptional flow regulation, featuring both equal percentage and linear flow characteristics which enable efficient energy management in heating and cooling systems. Its face-to-face flange dimensions comply with ANSI/ISA S75.03 standards.

Product Information

Standard Information

• Weight: 128 lbs
• Flow Capacity (Cv): 320
• Size: 5 inches

Technical Specifications

• Body Material: Cast Iron ASTM A126 Class B
• Max Pressure: 175 psi
• Temperature Range: 20°F to 353°F
• Connection Type: Flanged x Flanged
• Valve Type: Globe
