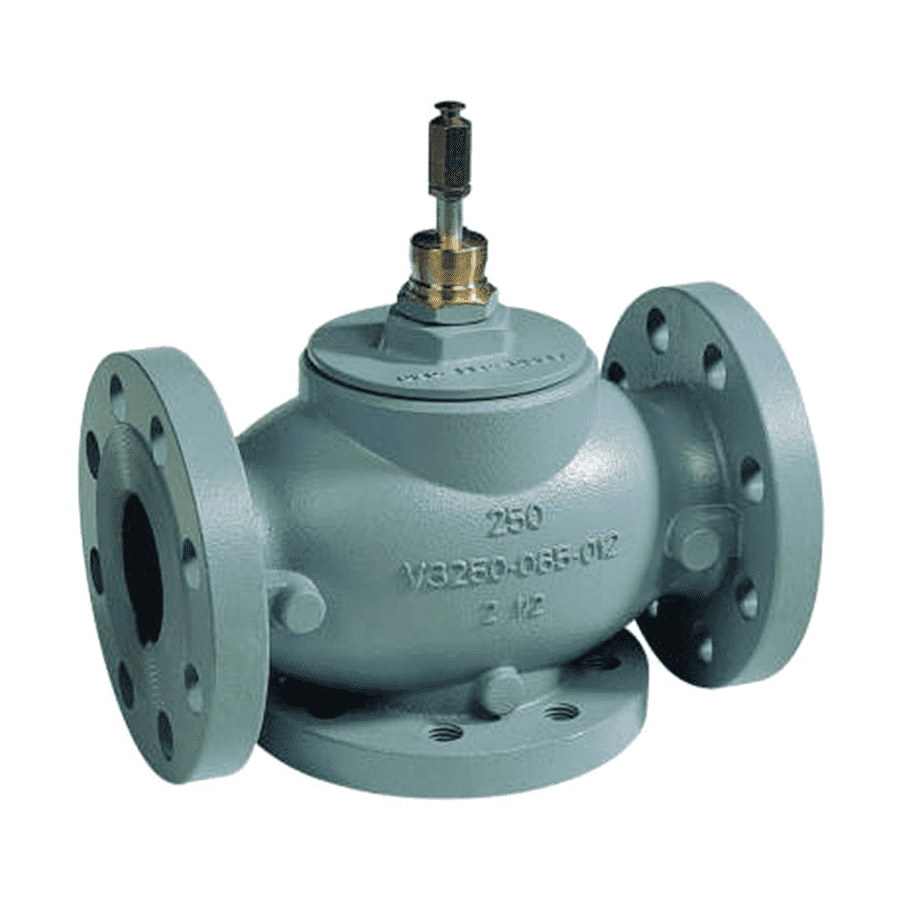

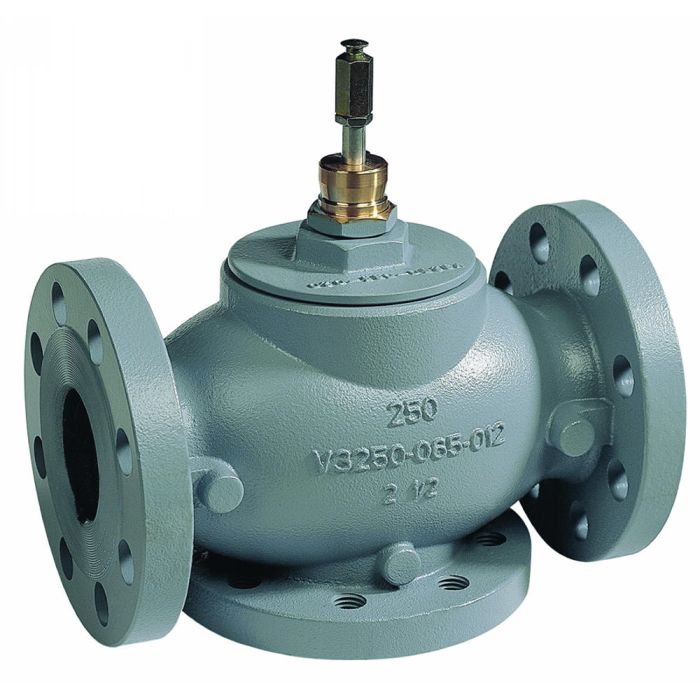

Honeywell VGF21LP40 Globe Valve, 2 Way, 4 in. 150 Cv

Product Description

The Honeywell VGF21LP40 is a flanged globe valve designed for 2-position or modulating control of steam, hot water, or chilled water-glycol solutions up to fifty percent concentration. This valve is ideal for HVAC systems and supports various actuator types including ML6984, ML6420, and MN/MS direct coupled actuators.

• ANSI Class 125 cast iron body with flanged ends
• Linear and equal percentage flow characteristics
• Stainless steel internal trim for extended durability

Product Highlights

With a maximum temperature of three hundred fifty-three degrees Fahrenheit and a differential pressure rating of one hundred seventy-five psi, this valve is built to perform reliably in demanding conditions.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VGF21LP40

Technical Specifications

• Flow Capacity (Cv): 150
• Connection: Flanged
• Operating Temperature: 20 F to 250 F, Steam: 353 F
• Close-Off Pressure: 175 psi
• Body Type: 2-Way Globe Valve
• Weight: 145 lbs
• Service: Steam, hot water, or chilled water-glycol solutions up to 50%
