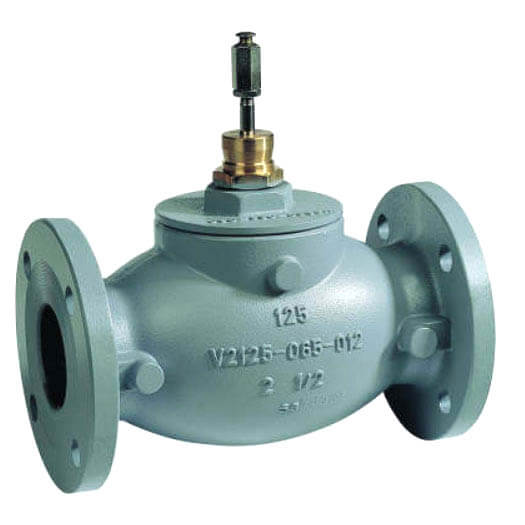

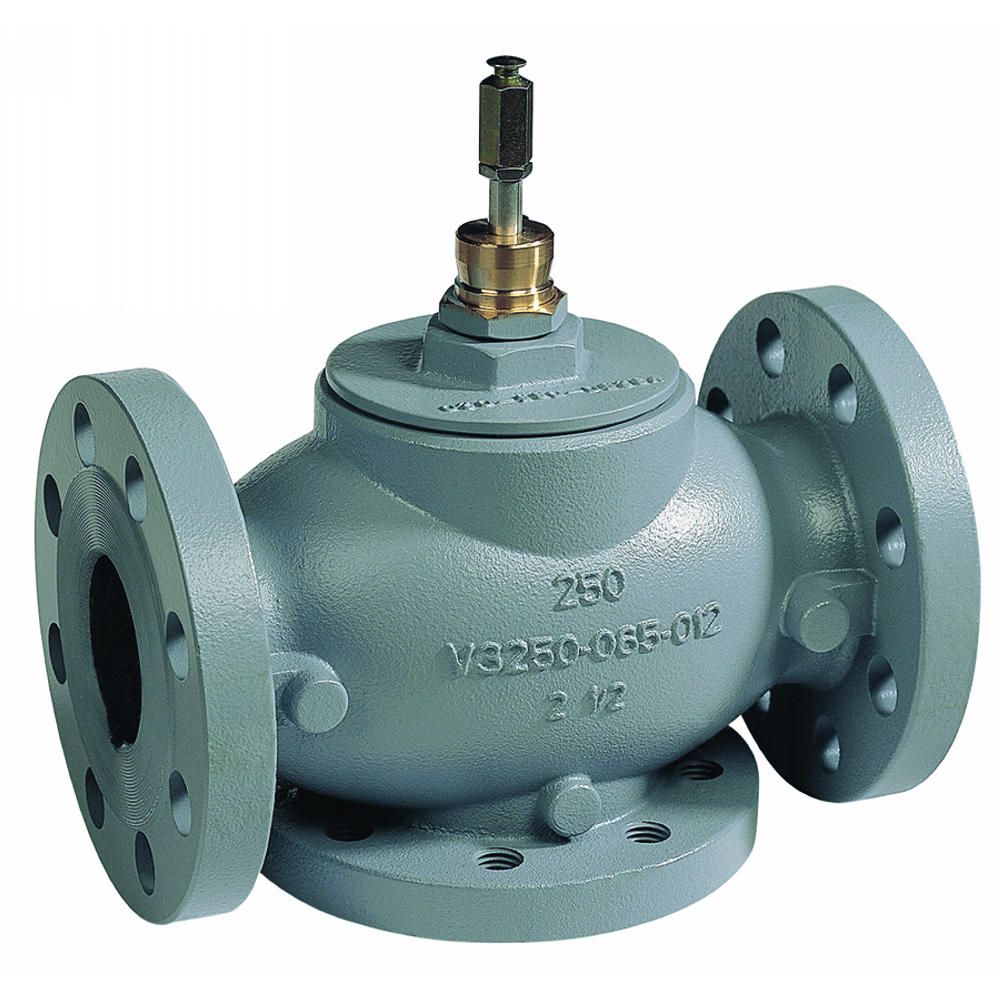

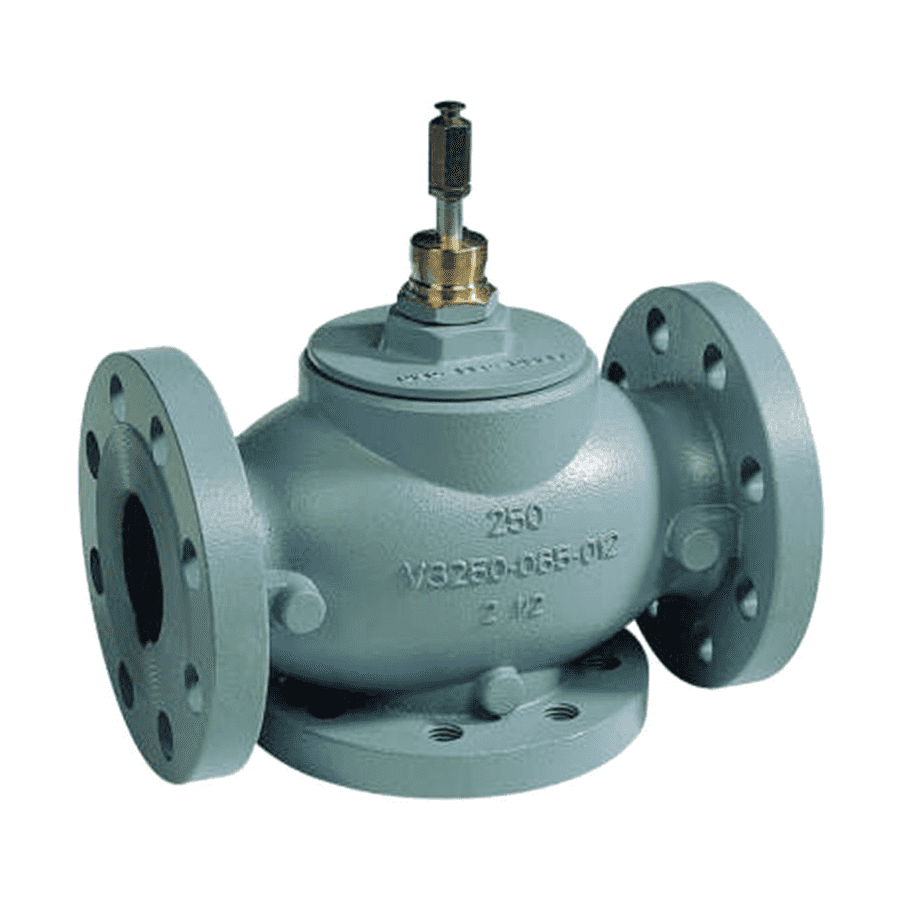

Honeywell VGF21ES50 Globe Valve 2 Way 5 in 285 Cv

Product Description

The Honeywell VGF21ES50 is a globe valve designed for effective flow control in HVAC systems. This valve is suitable for both steam and hot water applications as well as chilled water-glycol solutions. Its robust construction features a cast iron body and stainless steel components, ensuring longevity and reliability.

• ANSI Class 125 and Class 250 compliance
• Equal percentage and linear flow characteristics
• Compatible with various actuator types

Product Highlights

The VGF21ES50 valve ensures precise temperature control and optimal flow regulation, essential for HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Part #: VGF21ES50

Technical Specifications

• Service: Steam, hot water, or chilled water-glycol solutions up to 50% concentrations
• Close-Off Pressure: 175 psi
• Flow Characteristic: Equal Percentage
• Operating Temperature: 35 F to 130 F (2 C to 66 C)
• Size: 5 inches
• Material: Cast Iron ASTM A126 Class B
• Flow Capacity (Cv): 285
• Max Pressure (PSI): 175
