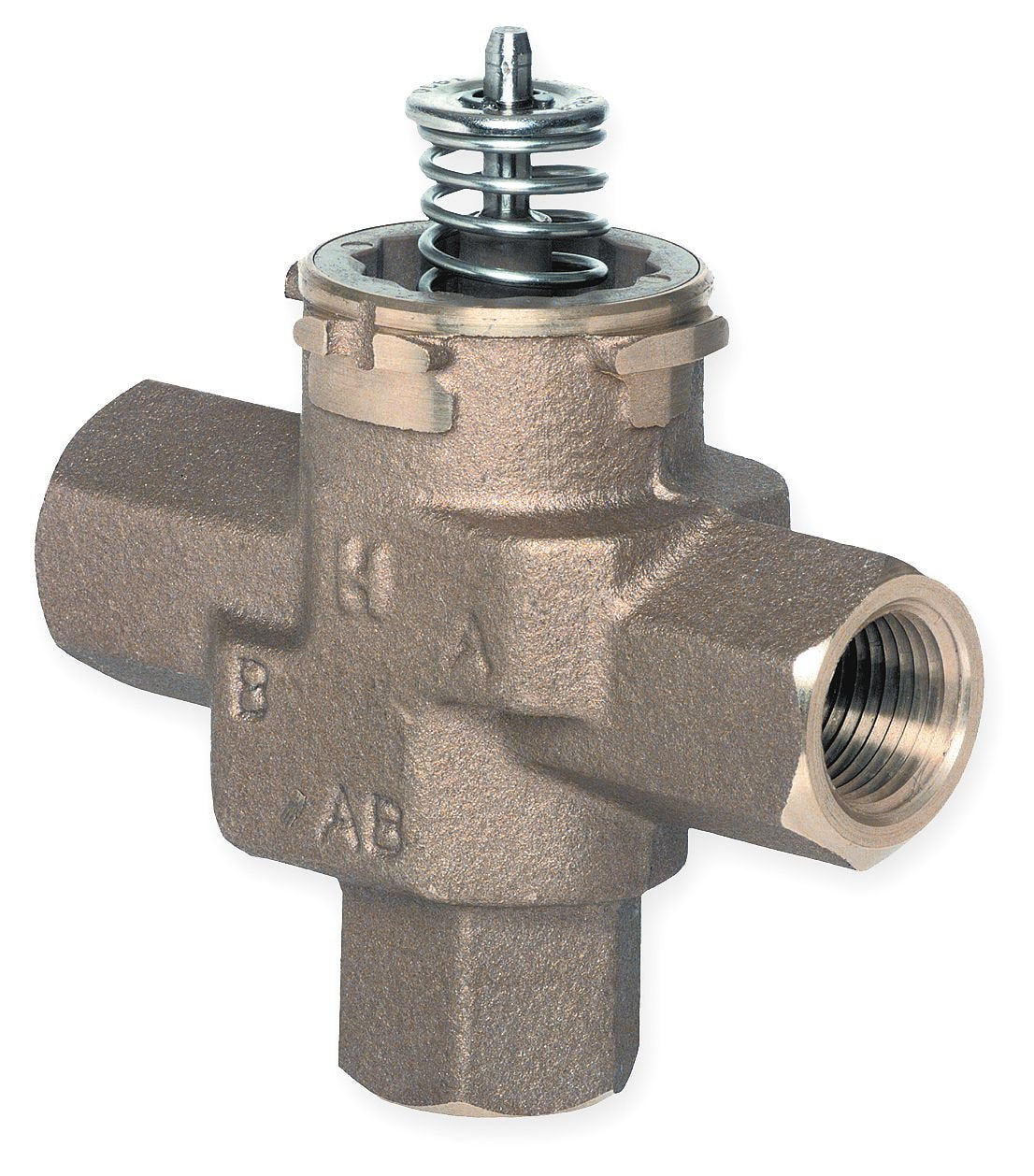

Honeywell VCZNB6100 1/2 inch Three-Way Cartridge Cage Valve 3.7 Cv

Product Description

The Honeywell VCZNB6100 Three-Way Cartridge Cage Valve is designed for HVAC systems and zone control. With a size of 1/2 inch and a flow capacity of 3.7 Cv, this valve is ideal for handling hot/chilled water and glycol.

• 1/2 inch nominal size
• 3.7 Cv flow capacity
• Bronze body material

Product Highlights

This valve features linear flow characteristics and a high close-off rating. It supports both mixing and diverting applications with an easy actuator installation and removal process.

Product Information

Standard Information

• Brand: Honeywell
• Model: VCZNB6100

Technical Specifications

• Nominal Size: 1/2 inch
• Flow Capacity: 3.7 Cv
• Body Material: Bronze
• Valve Position: Stem up to close A port
• Temperature Rating: 34 to 203 degrees Fahrenheit (fluid)
• Pressure Rating: 60 PSI (close-off), 300 PSI (static)
• End Connection: Female Threaded x Female Threaded
• Stem Travel Size: 0.4 inch
• Media Handled: Hot/Chilled Water, Glycol
• Ambient Temperature: 32 to 150 degrees Fahrenheit
• Material: EPDM O-Ring Seal on Noryl Piston (Seat), Stainless Steel (Stem), EPDM Rubber (Packing), Ryton/Noryl Engineering Plastic (Cartridge)
• Use with Actuators: VC Actuators, 2-Position, On-Off Type
