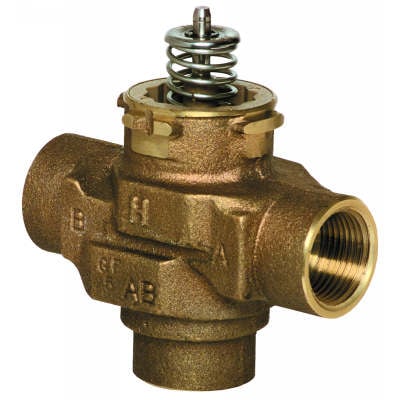

Honeywell VCZMK7100 HONEYWELL VCZM Series 3-Way Valve Body

Product Description

The Honeywell VCZMK7100 is a 3-way valve body ideal for fluid control in industrial settings. It connects with a three-quarter inch NPT end for compatibility with standard piping systems. This valve body consists of durable brass and includes stainless steel trim to prevent corrosion.

• Features a three-quarter inch NPT end connection.
• Utilizes a three-way design for effective fluid flow regulation.
• Constructed with brass body and stainless steel trim for enhanced durability.

Product Highlights

Designed for high reliability, the Honeywell VCZMK7100 offers efficient fluid control in a compact design.

Product Information

Standard Information

• Brand: Honeywell Inc
• Item Number: VCZMK7100

Technical Specifications

• Body Pattern: Three-Way
• Connection Type: Threaded
• Flow Capacity: Cv 6.6
• Flow Characteristic: Linear
• Gross Weight: 1.75 oz
• Max Close-Off Pressure: 60 psi
• Max Static Pressure: 300 psi
• Medium Temperature Range: 34 to 203 degrees F
• Net Weight: 1 lb 12 oz
• Pipe Size: 0.75 inches
• Series: VCZM
• Trim Material: EPDM
• Valve Style: Cartridge Cage
• Product Type: VC 3-Way
• Size: three-quarter inch
