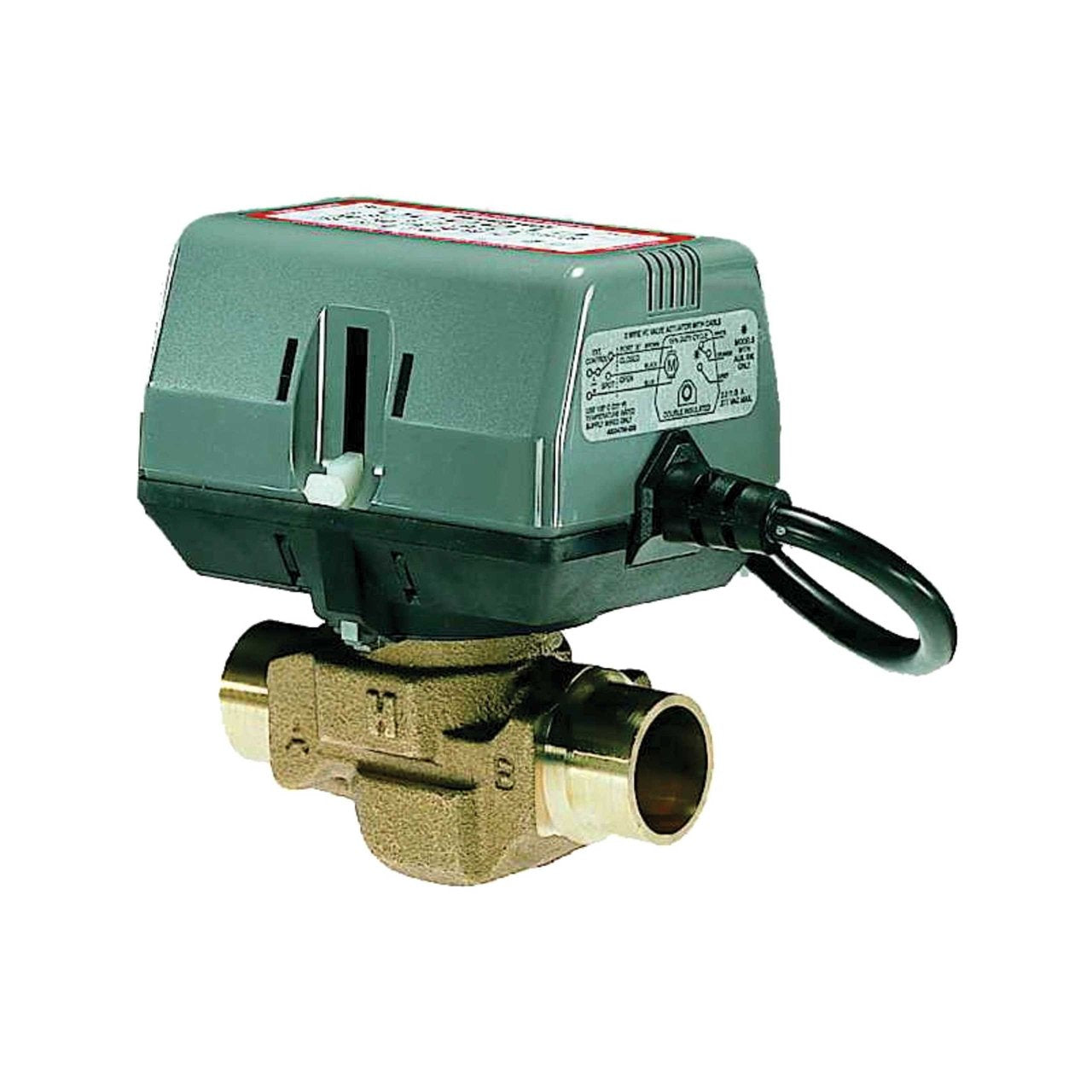

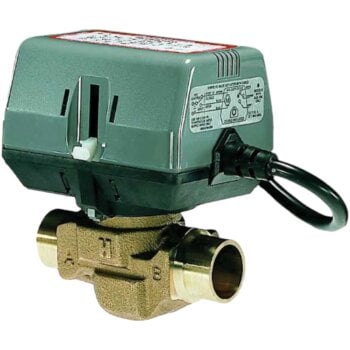

Honeywell VC8715AM1000/U vc valve 2 way 3/4 in. 5.8 cv 24v

Product Description

The HONEYWELL VC8715AM1000/U is a 2-way VC valve with a 3/4 inch sweat connection and bronze body, designed for water solutions with up to 50% glycol. It features a quick open flow characteristic and a flow coefficient of 5.8 Cv. This valve controls central heating/cooling systems, fan coil systems, radiators, and convectors, operating within 32 F to 140 F (0 C to 60 C) and handling a close-off pressure of 60 psi.

• Minimal actuator power consumption.
• Actuator head installation does not require draining the system.
• Quick and easy replacement of moving parts.

Product Highlights

24V sweat VC valve with auxiliary switch for central heating/cooling and fan coil systems.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: VC8715AM1000/U
• Country of Origin: Import

Technical Specifications

• Service: Water solutions With Max 50% Glycol Solutions
• Differential Pressure Max: 60 psi
• Flow Characteristic: Quick Open
• Ambient Operating Temperature: 32 F To 140 F (0 C To 60 C)
• Included Components: Valve VCZAM1100, Actuator VC8715ZZ11, Aux Switch
• Connection Type: Sweat
• Fail-Safe Operation: Stays in place
• Flow Coefficient: 5.8 Cv|5.0 Kvs
• Media Temperature Min: 34 °F, 1 °C
• Media Temperature Max: 203 °F, 95 °C
• Operating Pressure Max: 300 psi, 2068 kPa (20 Bar)
• Shipping and Storage Temperature Min: -40 °F, -40 °C
• Valve Body Material: Bronze
• Valve Seat Material: EPDM
• Valve Stem Length: 10 mm
• Valve Stem Material: Stainless Steel
• Valve Stem Travel: 0.4 in, 10 mm
• Series: VC8715
• Nominal Size: 3/4 in
• End Style: C
• Voltage Rating: 24 VDC
• Electrical Connections: 40 in Color-Coded Cable
• Valve Type: 2-Way
• Frequency: 60 Hz
• Control Signal: 24 VAC ON/OFF
• Auxiliary Switch Ratings: 24 VAC, 2.2 A pilot duty, Class 2, SPDT
• Timing: Nominal 6 sec
