HONEYWELL VC6930ZZ32 VC Floating Actuator 24 VAC

Product Description

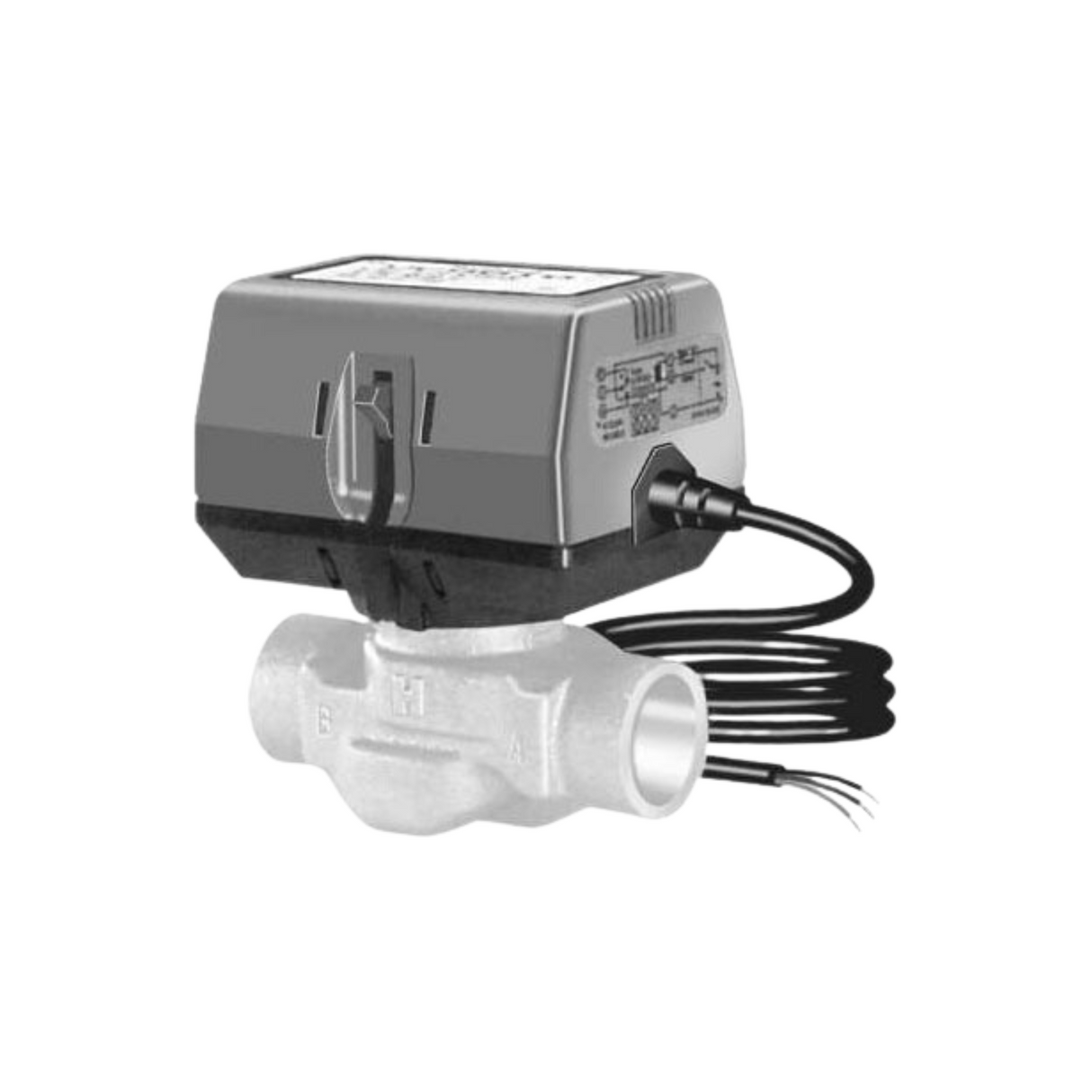

The HONEYWELL VC6930ZZ32 VC Floating Actuator controls the flow of hot or chilled water in various heating and cooling systems. It works with a 24 Volt AC, 3-wire signal. This actuator can be paired with a two-position controller for on-off control or a floating controller for modulating control. The actuator only requires power when moving the valve to the designated position.

• Interchangeable design suitable for valves ranging from one-half inch to one inch.
• Features a locking tab that secures the actuator to the valve body.
• Allows for multi-directional mounting and wiring orientations for easier installation.

Product Highlights

This actuator is essential for efficient control in HVAC applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VC6930ZZ32

Technical Specifications

• Product Type: Cartridge Cage Valve Actuator
• Voltage Rating: 24 VAC
• Frequency Rating: 50/60 Hz
• Power Rating: 6 VA (Driving)
• Enclosure: IP40
• Supply Connection Size: 5 Ft. Plenum Cable
• Body Material: Plastic
• Operating Temperature: 32 to 150 Degrees F
• Timing: 120 Seconds
• Includes: Flexible Conduit Adapter
