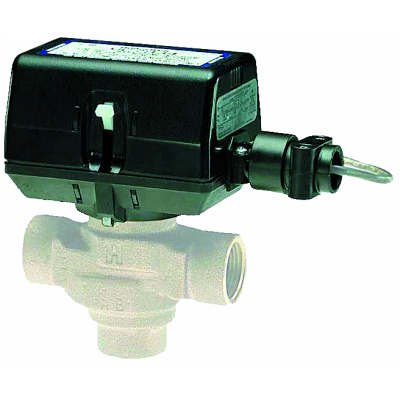

Honeywell VC2114ZZ11 Two Position Actuator 24 Volt Hydronic Valve

Product Description

The Honeywell VC2114ZZ11 is a two-position hydronic valve actuator. It is used in applications for quick on-off zone flow control in heating and cooling systems. Suitable for indoor use, it can control fan coils, baseboard radiators, or convectors. This actuator works with hot or chilled water and glycol solutions up to 60% concentration. A cam-operated cartridge travel helps resist water hammer, while internal limit switches prevent motor overrun.

• Compatible with two-way and three-way valves
• Quick-connect or one-meter cable electrical connections
• Quick and easy replacement without system draining

Product Highlights

This hydronic valve actuator features low power consumption and six-second nominal timing for fast performance. It is ideal for HVAC systems, offering a flexible conduit adapter and an IP40 rated enclosure for durability and protection.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell
• MPN: VC2114ZZ11

Technical Specifications

• Voltage Rating: 24 Volt AC
• Frequency Rating: 60 Hertz
• Power Rating: 6 Volt Amps
• Enclosure: IP40
• Dimensions: 3.7 inches width x 2.7 inches depth x 2.8 inches height
• Supply Connection Size: 5 foot plenum cable
• Body Material: Plastic
• Operating Temperature: 32 to 150 degrees Fahrenheit
• Approval: UL, CSA, CE
• Differential Pressure Rating: 60 PSID
• Timing: 6 seconds
