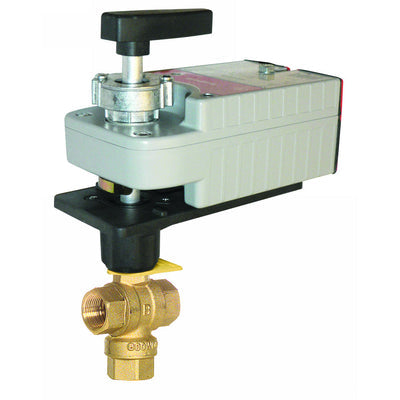

Honeywell VBN3FRPX6300 Ball Valve Assembly 3 Way 2 in NPT

Product Description

The Honeywell VBN3FRPX6300 is a three-way ball valve assembly designed for HVAC applications. This valve features a two-inch National Pipe Thread (NPT) connection and is engineered to control flow effectively in hot and chilled water systems as well as glycol solutions. It operates with a modulating actuator at twenty-four volts alternating current (VAC) and is suitable for both normally open and normally closed configurations.

• Features sizes from one-half inch to three inches with internal female NPT connections.
• Constructed with nickel chrome plated brass for durability.
• Fail safe operation allows for reliable function during power loss.

Product Highlights

Characterized control valve with eighty-three coefficient of flow (Cv) for effective performance. The actuator allows for easy mounting in any of four orientations, ensuring flexible installation options.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VBN3FRPX6300
• Minimum Order Quantity: 1
• Availability: Out of Stock

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot and chilled water, glycol solutions up to fifty percent
• Power Consumption: 5 VA
• Shaft Adapter Type: Self-centering clamping
• Flow Characteristic: Equal percentage
• Operating Conditions: -40 F to 150 F (-40 C to 65 C)
• Operating Temperature: -22 F to 250 F (-30 C to 121 C)
• Maximum Safe Operating Pressure Rating: 360 psi
