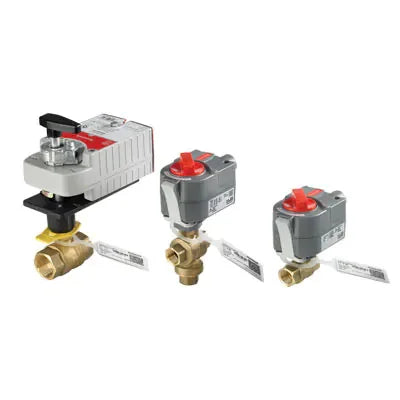

Honeywell VBN3CMPA0000 1NPT 3-Way 31Cv Bronze Valve

Product Description

The Honeywell VBN3CMPA0000 is a 1-inch National Pipe Thread (NPT) 3-way, 31Cv bronze body ball valve. Designed for commercial and industrial applications, this valve controls the flow of water, oil, gas, and other media.

• 1-inch National Pipe Thread (NPT)
• 3-way, 31Cv bronze body ball valve
• Ideal for water, oil, and gas control

Product Highlights

Honeywell's VBN3CMPA0000 ball valve features a brass ball and stem, ensuring durability and corrosion resistance. The Buna-N O-ring provides a tight seal. Rated for a maximum pressure of 150 psi and a maximum temperature of 180 degrees Fahrenheit, it is perfect for commercial and industrial environments.

Product Information

Standard Information

• Item Number: VBN3CMPA0000
• Brand: Honeywell
• Product Name: 1 3 Way Brass Threaded Control Ball Valve for MVN Actuator (31 Cv)

Technical Specifications

• Material: Brass
• Used With: MVN Actuator
• Body Pattern: 3-Way
• Connection Type: FNPT x FNPT
• Flow Capacity (Cv): 31
• Maximum Pressure: 150 psi
• Maximum Temperature: 180 degrees Fahrenheit
• Weight: 2
