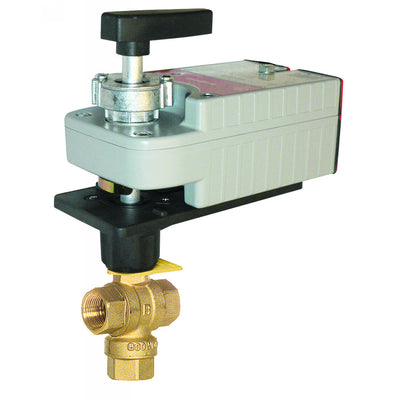

Honeywell VBN3AHPX5000 Ball Valve Assembly 3 Way 1/2 in NPT

Product Description

The Honeywell VBN3AHPX5000 is a three-way ball valve assembly with half-inch NPT connections. This valve features a characteristic control valve suitable for various HVAC applications. It operates with a direct coupled actuator and provides modulating control powered by twenty-four volts alternating current. This assembly is built to handle hot and chilled water, as well as glycol solutions, making it versatile for different systems.

• Sizes range from half-inch to three inches with internal female NPT connections.
• Field configurable for normally open or normally closed fail-safe positions.
• Capable of a maximum safe operating pressure of three hundred sixty psi.

Product Highlights

The Honeywell VBN3AHPX5000 provides reliable control for automated HVAC systems with options for manual operation during installation or power failures. Its robust design ensures long-lasting performance in challenging environments.

Product Information

Standard Information

• Brand: Honeywell
• Type: Ball Valve Assembly

Technical Specifications

• Power Consumption: 5 VA
• Operating Conditions: -5 F To 140 F (-20 C To 60 C)
• Operating Temperature: -22 F To 250 F (-30 C To 121 C)
• Flow Characteristic: Equal Percentage
• Housing: NEMA 2, IP54
• Shaft Adapter Type: U-Bolt Clamp
• Service: Hot And Chilled Water, Glycol Solutions Up To 50%
• Maximum Safe Operating Pressure Rating: 360 psi
