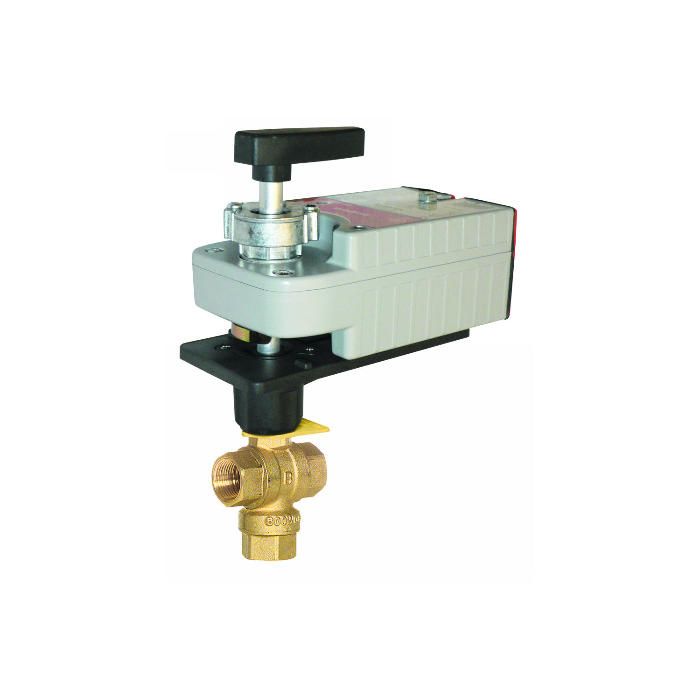

Honeywell VBN3AFPX6400 Ball Valve Assembly 3 Way 1/2 in NPT

Product Description

The Honeywell VBN3AFPX6400 is a three-way ball valve assembly designed for HVAC systems. It features a half-inch NPT connection and is capable of handling both hot and chilled water with glycol solutions. This valve includes a direct coupled actuator, ensuring reliable operation in various settings.

• Suitable for water systems up to 360 psi
• Field configurable for normally open or closed positions
• Removable manual handle for operation during power failure

Product Highlights

This valve assembly provides consistent loop flow and is easy to install without additional piping.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBN3AFPX6400

Technical Specifications

• Flow Characteristic: Equal Percentage
• Power Consumption: 5 VA
• Operating Temperature: -22 F To 250 F (-30 C To 121 C)
• Operating Conditions: -40 F To 150 F (-40 C To 65 C)
• Service: Hot And Chilled Water w/Glycol Solutions Up To 50%
• Maximum Safe Operating Rating: 360 psi
• Housing: NEMA 2, IP54
• Shaft Adapter Type: Self-Centering Clamping
