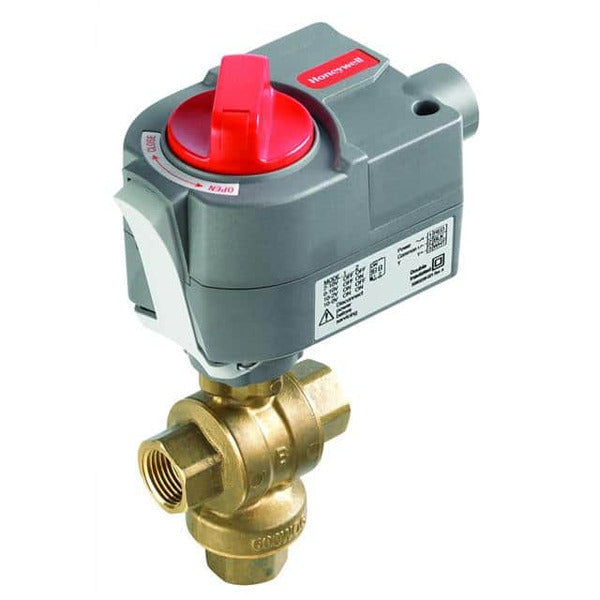

HONEYWELL VBN3AFPX4002 CONTROL BALL VALVE WITH ELECTRIC ACTUATOR

Product Description

The Honeywell VBN3AFPX4002 is a control ball valve with an electric actuator suitable for HVAC applications. It has a half inch NPT connection and is designed in a three-way configuration. This valve has a two point four Cv rating and features a plated brass trim for durability. The valve operates using a DCA profile and provides floating on/off control with a fail-in-place feature. It can efficiently manage hot and chilled water systems, even with up to fifty percent glycol solutions.

• Half inch NPT connection
• Three-way valve with two point four Cv rating
• Floating on/off operation with fail-in-place design

Product Highlights

This control ball valve is essential for HVAC systems that require effective flow management.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBN3AFPX4002

Technical Specifications

• Connection: 1/2 inch NPT
• Valve Type: Ball Valve
• Actuator: Electric
• Number of Ways: 3-Way
• Cv: 2.4
• Trim Material: Plated Brass
• Control Signal: Floating On/Off
• Voltage: 24 VAC
