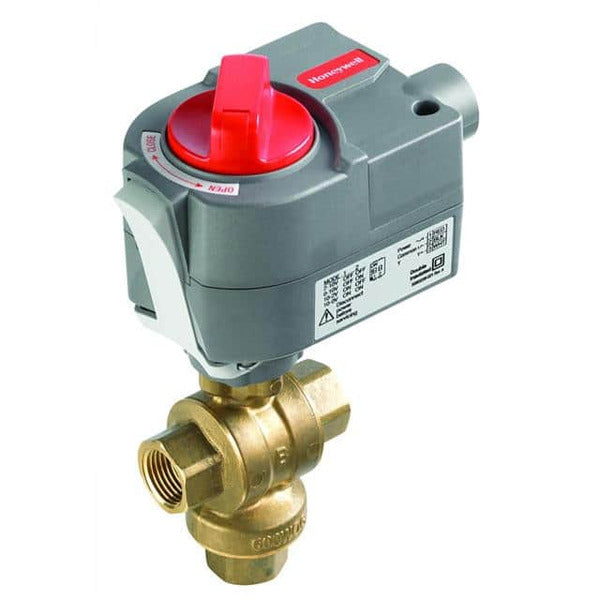

Honeywell VBN3AFPL0000 1/2 3 Way Brass Threaded Low Profile Control Ball Valve for MVN Actuator

Product Description

The Honeywell VBN3AFPL0000 is a 1/2 inch 3-way brass threaded low-profile control ball valve designed for effective use with an MVN actuator. It is suitable for controlling hot and chilled water, and can handle glycol solutions up to fifty percent in HVAC systems. This valve supports both two-position and modulating functions. Its low-profile design is ideal for installation in confined spaces. The product can be ordered on its own or with options for spring return and non-spring return actuators.

• 1/2 to 3-inch sizes with internal NPT connections.
• Equal percentage flow characteristic with reduced B port CV for consistent loop flow.
• Available with factory-installed actuation options: floating, modulating (2-10 V), spring return, or non-spring return.

Product Highlights

This valve is designed for low-profile installation and adaptability in HVAC applications, making it a practical choice for professionals.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBN3AFPL0000

Technical Specifications

• Connection: 1/2 inch FNPT x FNPT
• Valve Type: 3-Way
• Material: Brass
• Cv: 2.4
• Actuator: MVN Actuator
